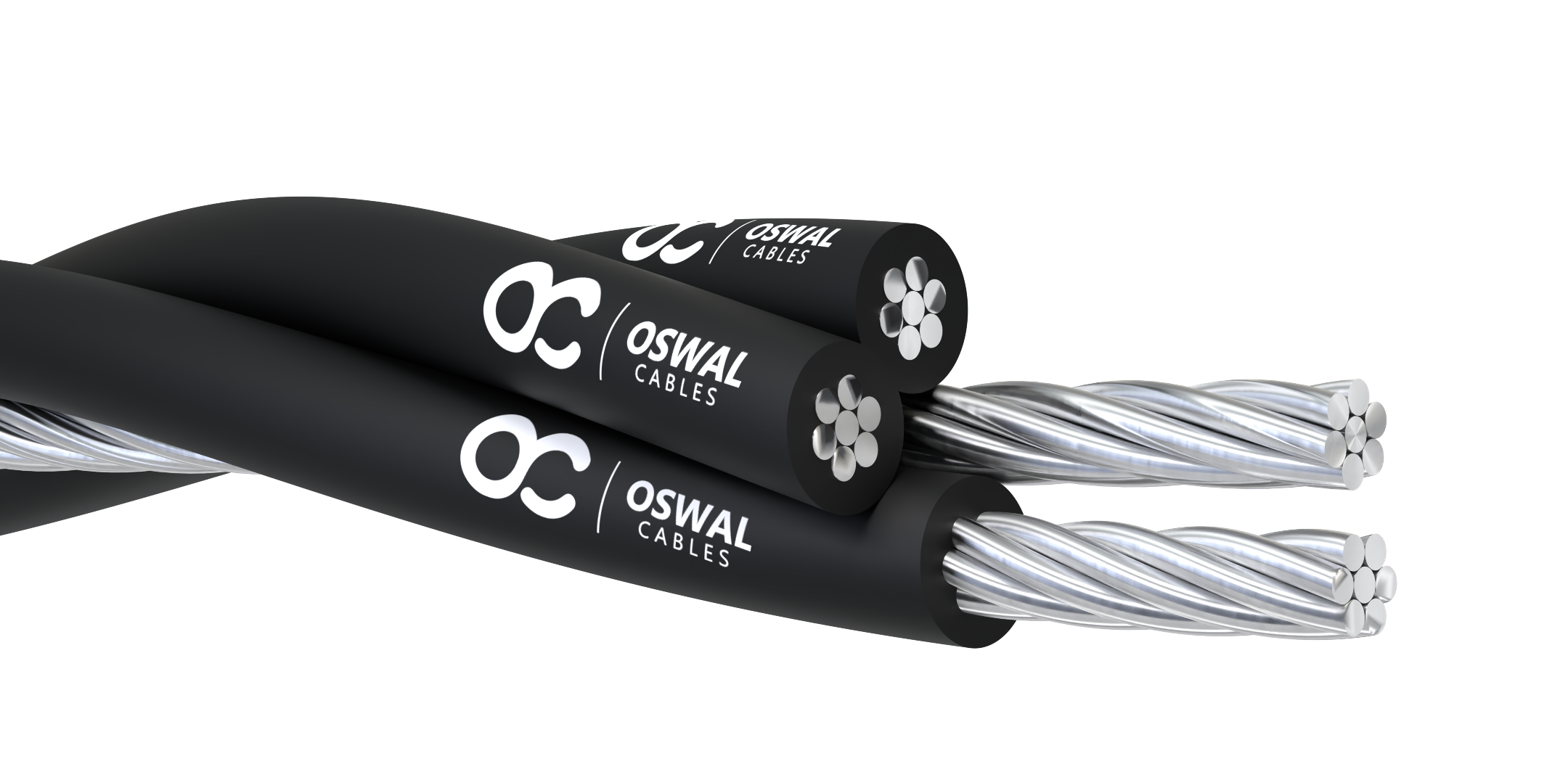

Service Drop Quadruplex
Quadruplex Overhead Aluminum Conductor (Service Drop).
Applications
Where it is used
- Used to supply 3 phase power, usually from a pole-mounted transformer, to the user’s service head where connection to the service entrance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross-linked-polyethylene (XLP) insulated conductors.
Construction
What it's built from
- Construction
- Concentrically stranded, compressed 1350-H19 aluminum conductor, cross-linked polyethylene (XLP) or polyethylene (PE) insulation, concentrically stranded AAC, ACSR or 6201 alloy bare neutral messenger.
- Options
- Ridged Phase ID
Technical specifications
Sizes & ratings
AAC NEUTRAL MESSENGER
| Code Word | Phase Size (AWG/kcmil) | Phase No. of Strands | Insulation Thickness (in) | Neutral Size (AWG/kcmil) | Neutral No. of Strands | Breaking Strength (lbs) | Completed Cable Diameter (in) | Weight XLP (lbs/kft) | Weight Poly (lbs/kft) | Ampacity XLP 90°C (amps) | Ampacity PE 75°C (amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Clydesdale | 4 | Solid | 0.045 | 4 | 7 | 881 | 0.68 | 208 | 201 | 100 | 80 |
| Pinto | 4 | 7/w | 0.045 | 4 | 7 | 881 | 0.73 | 223 | 207 | 100 | 80 |
| Mustang | 2 | 7/w | 0.045 | 2 | 7 | 1,350 | 0.88 | 333 | 312 | 135 | 105 |
| Criollo | 1/0 | 19/w | 0.060 | 1/0 | 7 | 1,990 | 1.12 | 529 | 504 | 180 | 140 |
| Percheron | 2/0 | 19/w | 0.060 | 2/0 | 7 | 2,510 | 1.24 | 649 | 620 | 205 | 160 |
| Hanoverian | 3/0 | 19/w | 0.060 | 3/0 | 19 | 3,310 | 1.36 | 799 | 765 | 235 | 185 |
| Oldenburg | 4/0 | 19/w | 0.060 | 4/0 | 19 | 4,020 | 1.50 | 986 | 946 | 275 | 210 |
| Lippizaner | 336.4 | 19/w | 0.080 | 336.4 | 19 | 6,146 | 1.91 | 1,546 | 1,519 | 370 | 280 |
All values are nominal and subject to correction #Conductor temperature of 90ºC for XLP, 75ºC for Poly; ambient temperature of 40ºC, emissivity 0.9, 2ft/sec. wind in sun. ##Designated 6201 neutral sizes are ACSR 6/1 diameter equivalent, phase conductor resistivity equivalent per ASTM B399.
ACSR NEUTRAL MESSENGER
| Code Word | Phase Size (AWG/kcmil) | Phase No. of Strands | Insulation Thickness (in) | Neutral Size (AWG/kcmil) | Neutral No. of Strands | Breaking Strength (lbs) | Completed Cable Diameter (in) | Weight XLP (lbs/kft) | Weight Poly (lbs/kft) | Ampacity XLP 90°C (amps) | Ampacity PE 75°C (amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Morochuca | 6 | Solid | 0.045 | 6 | 6/1 | 1,190 | 0.58 | 152 | 147 | 75 | 60 |
| Chola | 6 | 7/W | 0.045 | 6 | 6/1 | 1,190 | 0.62 | 162 | 151 | 75 | 60 |
| Morgan | 4 | Solid | 0.045 | 4 | 6/1 | 1,860 | 0.69 | 226 | 220 | 100 | 80 |
| Hackney | 4 | 7/W | 0.045 | 4 | 6/1 | 1,860 | 0.74 | 241 | 226 | 100 | 80 |
| Palomino | 2 | 7/W | 0.045 | 2 | 6/1 | 2,850 | 0.89 | 362 | 342 | 135 | 105 |
| Costena | 1/0 | 19/W | 0.060 | 1/0 | 6/1 | 4,380 | 1.14 | 575 | 550 | 180 | 140 |
| Grullo | 2/0 | 19/W | 0.060 | 2/0 | 6/1 | 5,310 | 1.26 | 707 | 678 | 205 | 160 |
| Suffolk | 3/0 | 19/W | 0.060 | 3/0 | 6/1 | 6,620 | 1.38 | 872 | 838 | 235 | 180 |
| Appaloosa | 4/0 | 19/W | 0.060 | 4/0 | 6/1 | 8,350 | 1.52 | 1,079 | 1,039 | 275 | 210 |
| Bronco | 336.4 | 19/W | 0.080 | 336.4 | 18/1 | 8,580 | 1.92 | 1,613 | 1,568 | 370 | 280 |
| Gelding | 336.4 | 19/W | 0.080 | 4/0 | 6/1 | 8,350 | 1.85 | 1,548 | 1,494 | 370 | 280 |
| Hurricane | 500 | 37/w | 0.080 | 336.4 | 26/7 | 14,100 | 2.21 | 2,196 | 2,186 | 480 | 360 |
All values are nominal and subject to correction #Conductor temperature of 90ºC for XLP, 75ºC for Poly; ambient temperature of 40ºC, emissivity 0.9, 2ft/sec. wind in sun. ##Designated 6201 neutral sizes are ACSR 6/1 diameter equivalent, phase conductor resistivity equivalent per ASTM B399.
6201 ALLOY NEUTRAL MESSENGER
| Code Word | Phase Size (AWG/kcmil) | Phase No. of Strands | Insulation Thickness (in) | Neutral Size (AWG/kcmil) | Neutral No. of Strands | Breaking Strength (lbs) | Completed Cable Diameter (in) | Weight XLP (lbs/kft) | Weight Poly (lbs/kft) | Ampacity XLP 90°C (amps) | Ampacity PE 75°C (amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Bay | 6 | Solid | 0.045 | 6 | 7 | 1,110 | 0.59 | 145 | 140 | 75 | 60 |
| French-Coach | 6 | 7/w | 0.045 | 6 | 7 | 1,110 | 0.63 | 155 | 144 | 75 | 60 |
| German-Coach | 4 | Solid | 0.045 | 4 | 7 | 1,760 | 0.69 | 214 | 208 | 100 | 80 |
| Arabian | 4 | 7/w | 0.045 | 4 | 7 | 1,760 | 0.74 | 229 | 214 | 100 | 80 |
| Belgian | 2 | 7/w | 0.045 | 2 | 7 | 2,800 | 0.89 | 344 | 323 | 135 | 105 |
| Shetland | 1/0 | 19/w | 0.060 | 1/0 | 7 | 4,460 | 1.14 | 546 | 521 | 180 | 140 |
| Thoroughbred | 2/0 | 19/w | 0.060 | 2/0 | 7 | 5,390 | 1.26 | 670 | 641 | 205 | 160 |
| Trotter | 3/0 | 19/w | 0.060 | 3/0 | 7 | 6,790 | 1.38 | 825 | 791 | 135 | 185 |
| Walking | 4/0 | 19/w | 0.060 | 4/0 | 7 | 8,560 | 1.52 | 1,019 | 979 | 275 | 210 |
All values are nominal and subject to correction #Conductor temperature of 90ºC for XLP, 75ºC for Poly; ambient temperature of 40ºC, emissivity 0.9, 2ft/sec. wind in sun. ##Designated 6201 neutral sizes are ACSR 6/1 diameter equivalent, phase conductor resistivity equivalent per ASTM B399.
Standards
Referenced specifications
- ASTM B-230 Aluminum 1350–H19 Wire for Electrical Purposes
- ASTM B-231 Concentric-Lay-Stranded Aluminum 1350 Conductors
- ASTM B-232 Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR)
- ASTM B-399 Concentric-Lay-Stranded Aluminum-Alloy 6201-T81 Conductors
- ICEA S-76-474 — Service Drop cable meets or exceeds all applicable requirements
