Company Update
Capacity and process upgrades across cable production lines
An overview of ongoing modernisation of extrusion, stranding and testing infrastructure at our manufacturing operations.
Since 1971 · Jaipur, India
Engineering theConductorsof Progress
Integrated cable and conductor solutions for critical power, mobility and infrastructure applications.
Scroll to follow the line
Company credibility
0
Established In
Five decades of continuous cable and conductor engineering.
0+
Customers Served
0+
Employees
0+
Product Range
₹0 Cr
Order Book
0%
CAGR (5 Years)
Client verification required: Installed capacity figures remain unpublished until confirmed in writing.
Who we are
Material, process and inspection stay connected — from rod to energised line.
Manufacturing critical cables and overhead conductors that support power infrastructure and contribute to India's progress.
From our base in Jaipur, Rajasthan, Oswal Cables manufactures low-voltage power cables, mobility cables, application-specific special cables and bare overhead conductors. Five decades of engineering practice, in-house testing and customisation capability allow us to serve utilities, industry, infrastructure developers and export customers with materials expected to last the life of an asset.
About Oswal Cables

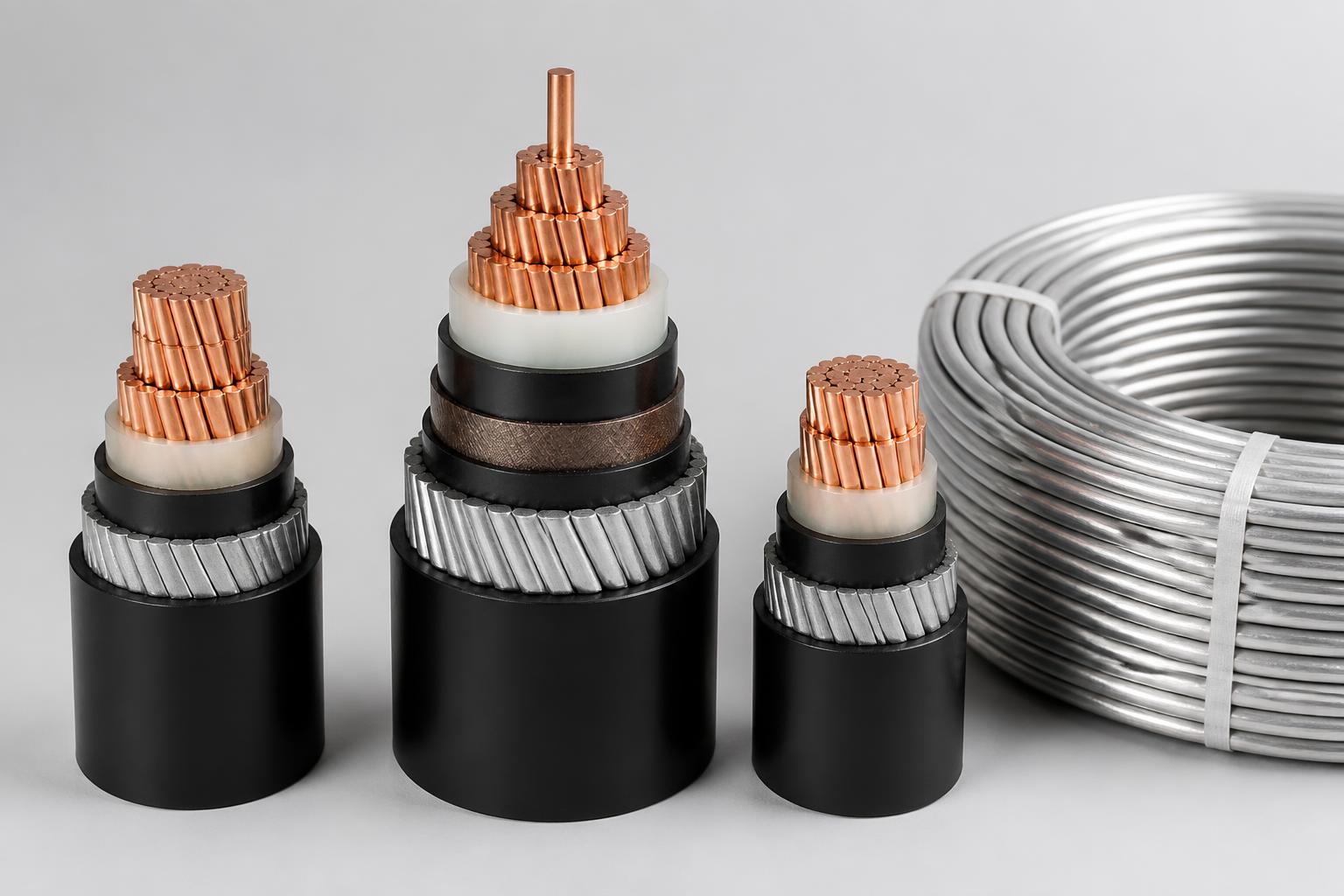

Engineered for the application, not the catalogue
Full catalogue- Building Wire & Cable
- Building Wire & Cable
- Building Wire & Cable
- Building Wire & Cable
- Service Drop Cables
- Service Drop Cables
- Bare Conductors
- Bare Conductors
- Wires & Accessories
- Wires & Accessories
01 / 010
600 V / 1000 V
Building Wire & Cable
Copper XHHW-2
Soft drawn bare copper conductor with abrasion, heat, moisture and flame resistant XLPE insulation for power distribution in conduits and raceways, rated for wet and dry locations up to 90°C.
- Conductor
- Soft drawn bare copper, compressed stranding
- Insulation
- Cross-linked polyethylene (XLPE), multiple colours
- Temperature rating
- 90°C wet or dry
- Surface
- Low friction 'slick' compound on request
Applications: Services, feeders and branch circuits per NEC · Wet and dry location installations up to 90°C · Conduit and raceway power distribution · Cable tray use in 1/0 AWG and larger
Technical detailBuilding Wire & Cable
Aluminum XHHW-2 / RW90
Compact AA-8000 series aluminium alloy conductor with cross-linked polyethylene insulation for service, feeder and branch circuits in wet or dry locations up to 90°C.
- Conductor
- Compact bare AA-8000 aluminium alloy, Class B
- Insulation
- Cross-linked polyethylene (XLP), ten solid colours
- Temperature rating
- 90°C wet or dry
- Surface
- Low coefficient of friction 'slick' finish
Applications: Service, feeder and branch circuits in conduit or raceway · Wet and dry locations up to 90°C · Cable tray rating for 1/0 AWG and above on request · Sunlight exposed installations
Technical detailBuilding Wire & Cable
Aluminum RHH / RHW-2 / USE-2
Compact 8000 series aluminium conductor with 90°C cross-linked polyethylene insulation for power distribution in raceway, conduit, direct burial and aerial installations.
- Conductor
- Compact bare 8000 series aluminium, Class B
- Insulation
- Cross-linked polyethylene (XLP), 90°C
- Environment
- Wet or dry locations, sunlight resistant
- Resistance
- Oil resistant PRI/PRII, gas and oil resistant GRI/GRII
Applications: Underground service entrance and distribution · Direct burial and duct installations · Aerial installations on messengers · Cable tray use in 1/0 AWG and larger
Technical detailBuilding Wire & Cable
Type L2 Central Office Cable
Heavy-duty tinned copper central office power cable with low smoke zero halogen XLPO insulation, engineered for AC and DC power distribution in telecommunications facilities.
- Conductor
- Class I stranded tinned copper, mylar taped
- Insulation
- LSZH cross-linked polyolefin (XLPO), 90°C
- Temperature rating
- 90°C dry, 75°C wet, 250°C short circuit
- Colours
- Red, blue, grey, green, black to RAL references
Applications: Telecommunications central office power distribution · AC and DC feeds in conduit or cable tray · Facilities requiring low smoke zero halogen materials · Cable tray use in 1/0 AWG and larger
Technical detailService Drop Cables

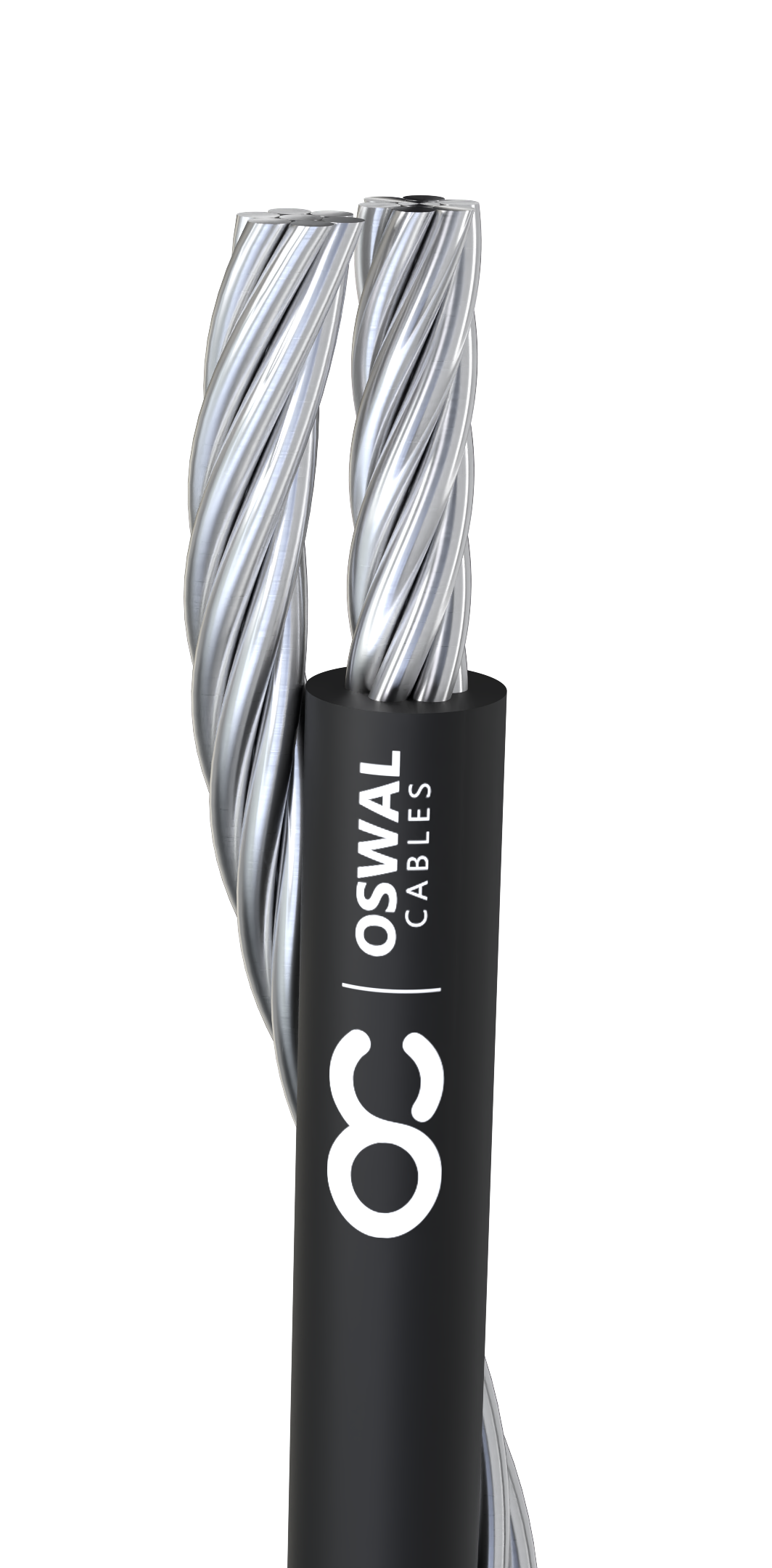

Duplex Service Drop
Single insulated 1350-H19 aluminium phase conductor assembled with a bare neutral messenger for aerial service connections, temporary construction supply and street lighting.
- Phase conductor
- Compressed concentric 1350-H19 aluminium
- Insulation
- XLP (90°C) or PE (75°C)
- Messenger
- Bare AAC, ACSR or 6201 alloy neutral
- Options
- Ridged phase identification
Applications: Aerial service drops to single phase premises · Temporary supply at construction sites · Outdoor and street lighting circuits · Overhead secondary distribution
Technical detailService Drop Cables

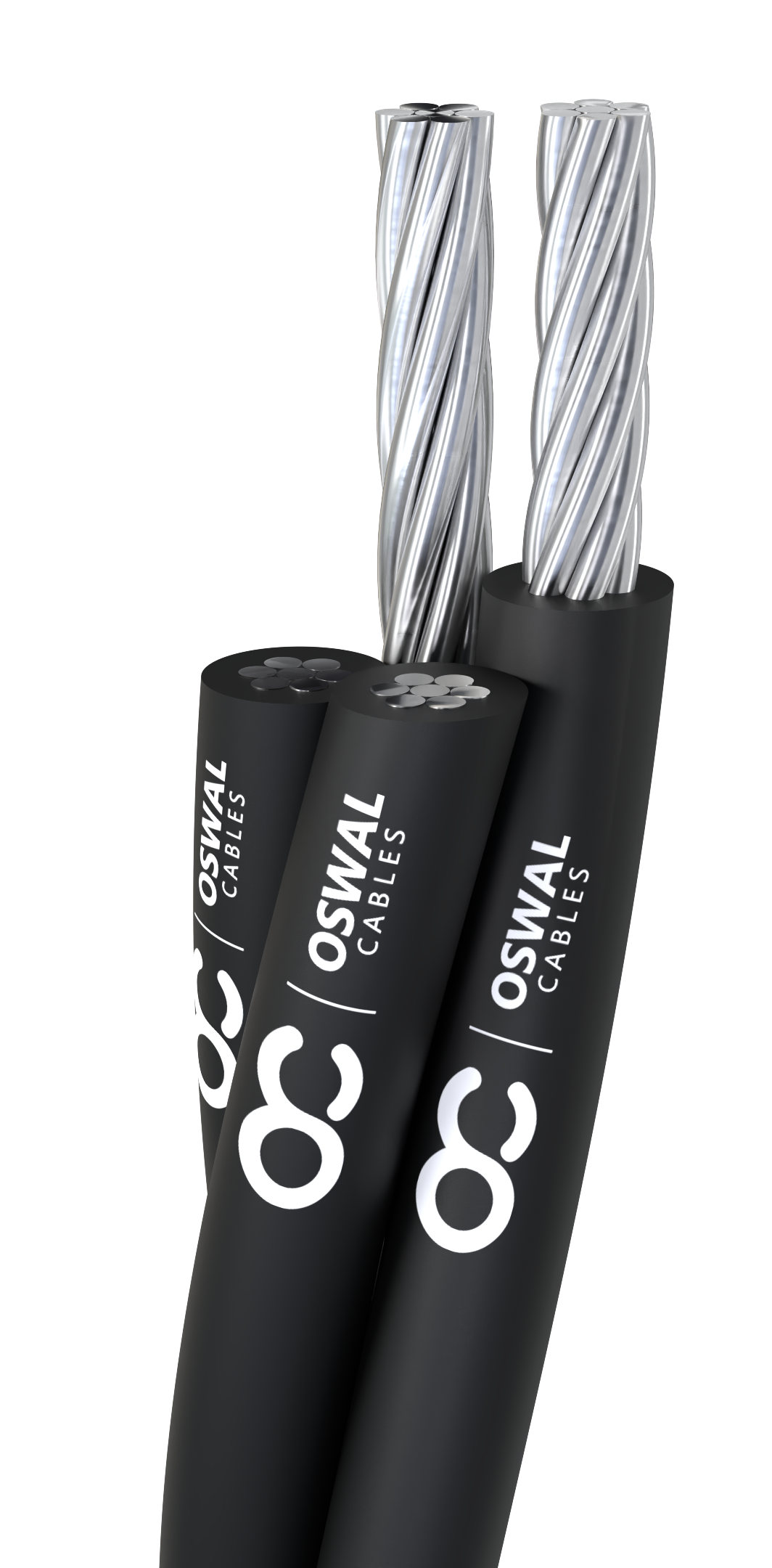

Quadruplex Service Drop
Three insulated 1350-H19 aluminium phase conductors assembled with a bare neutral messenger to carry three phase power from pole-mounted transformers to the service head.
- Phase conductors
- Three compressed concentric 1350-H19 aluminium
- Insulation
- XLP (90°C) or PE (75°C)
- Messenger
- Bare AAC, ACSR or 6201 alloy neutral
- Options
- Ridged phase identification
Applications: Three phase service drops from pole transformers · Overhead secondary distribution networks · Commercial and light industrial service connections · Utility network extensions

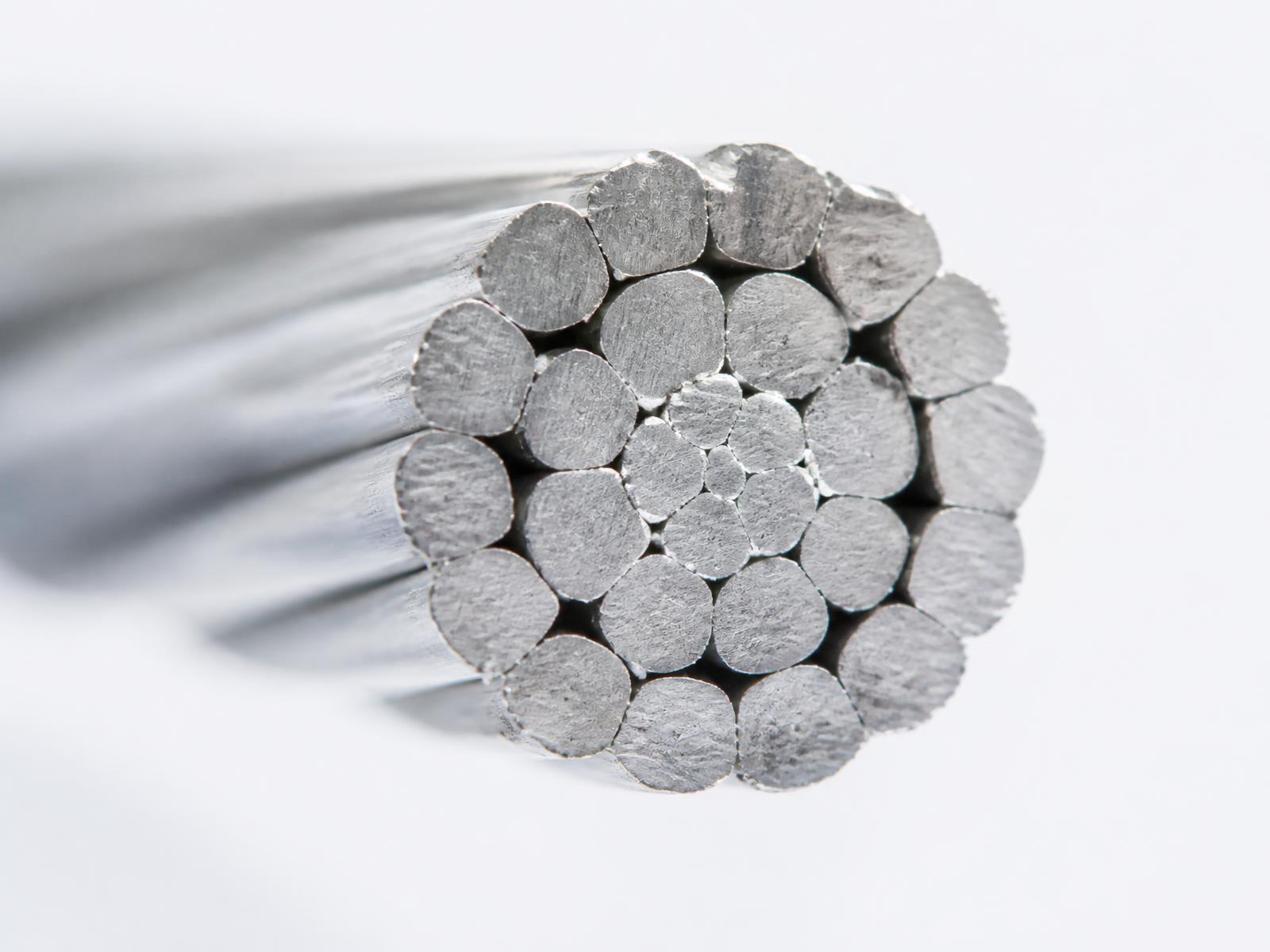

Technical detailBare Conductors

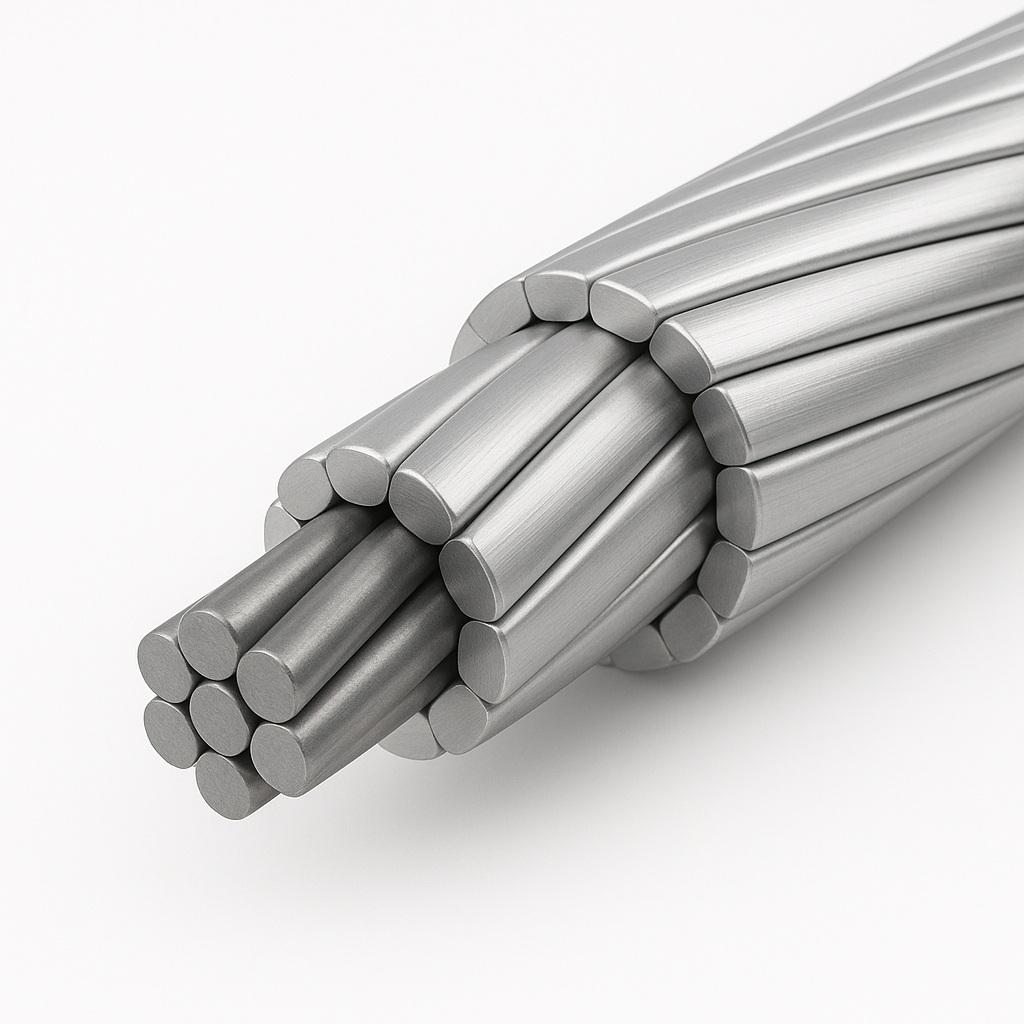

ACSS Conductor
Annealed 1350 aluminium wires stranded around a coated steel core, operating continuously up to 250°C at full strength with less sag, self-damping behaviour and higher current capacity than standard ACSR.
- Construction
- Aluminium alloy 1350 concentrically stranded over steel core
- Temperature rating
- Continuous operation to 250°C at full strength
- Core options
- Standard and high strength coated steel
- Finish
- Non-specular finish available on request
Applications: Overhead transmission and distribution lines · New lines requiring high emergency loading · Reconductoring on existing structures · Spans where conductor vibration is a problem
Technical detailBare Conductors

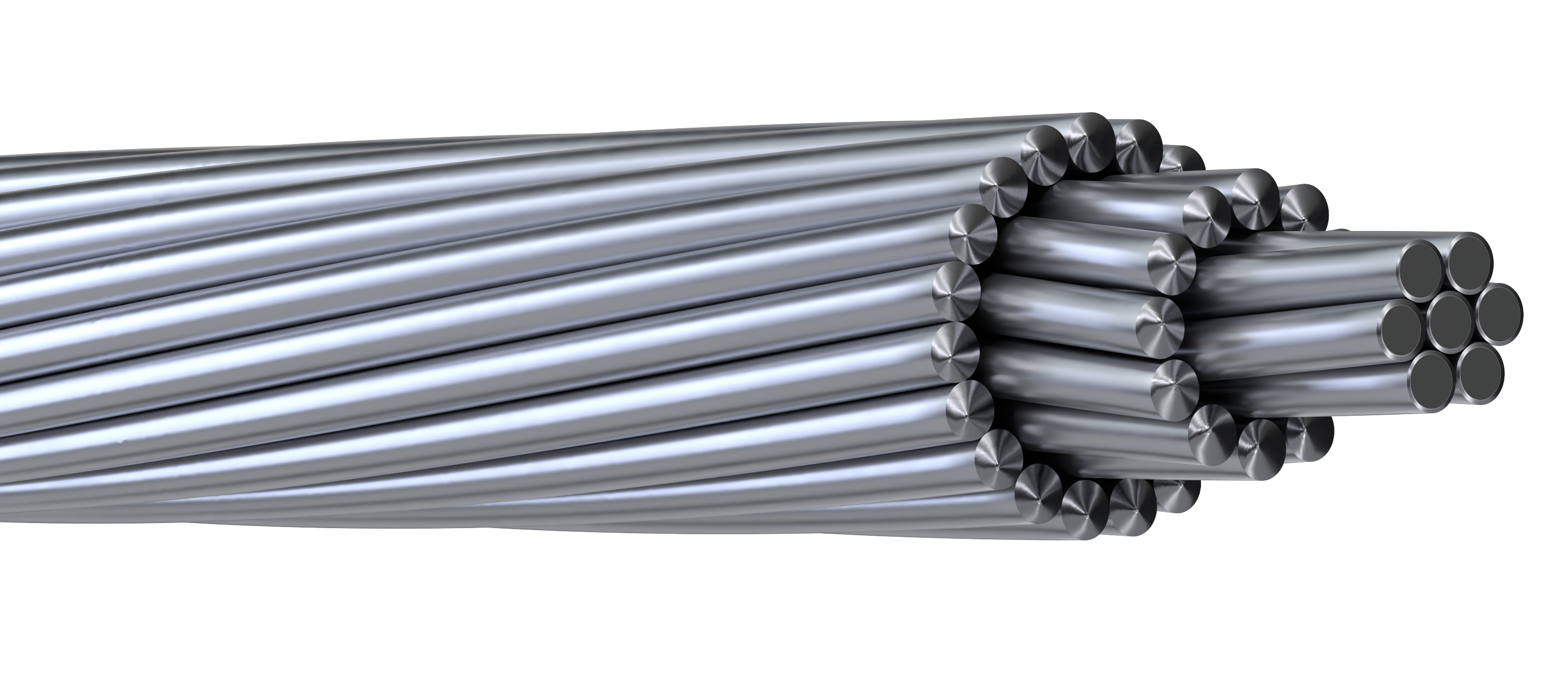

ACSR/AW Conductor
Aluminium 1350-H19 wires stranded around an aluminium-clad steel core, offering ACSR strength with slightly greater ampacity and improved corrosion resistance.
- Construction
- Aluminium 1350-H19 over aluminium-clad steel core
- Benefit
- Greater ampacity and corrosion resistance than ACSR
- Stranding
- 6/1 through 54/19 configurations
- Range
- 4 AWG to 1590 kcmil
Applications: Bare overhead transmission lines · Primary and secondary distribution · Corrosive and coastal environments · High mechanical strength spans
Technical detailWires & Accessories

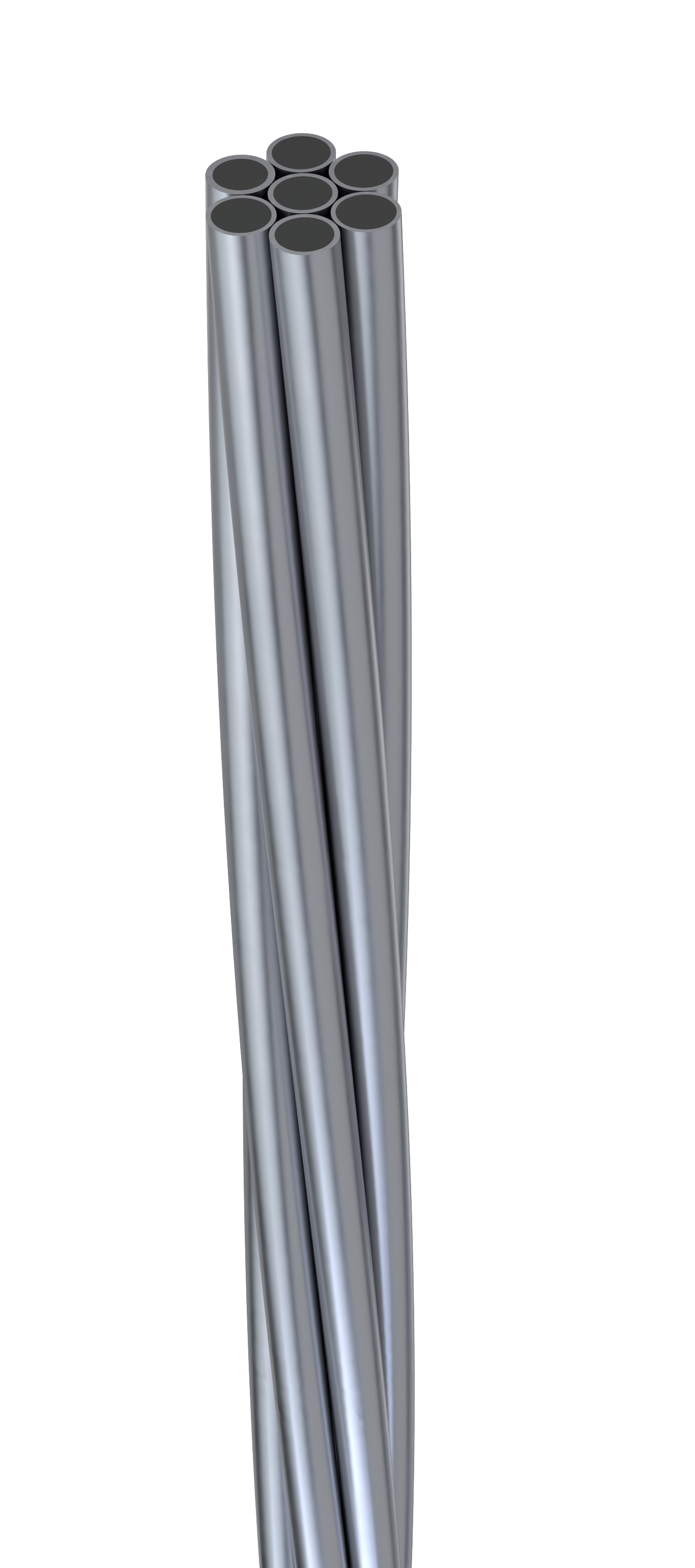

Galvanized Steel Guy & Earth Wire
Concentrically stranded galvanized steel wire strand used as overhead ground wire or static wire on transmission lines, as pole and structure guy wire, and as messenger cable for field-erected aerial cable.
- Construction
- Galvanized steel wires stranded over a central steel wire
- Zinc coating
- Class A, B and C — A lightest, C heaviest
- Stranding
- 3, 4, 7, 19 and 37 wire constructions
- Grades
- Common through extra high strength and utility grade
Applications: Overhead ground wire and static wire · Pole and structure guy or stay wire · Messenger cable for aerial cable erection · Construction, industrial and power station use
Technical detailWires & Accessories

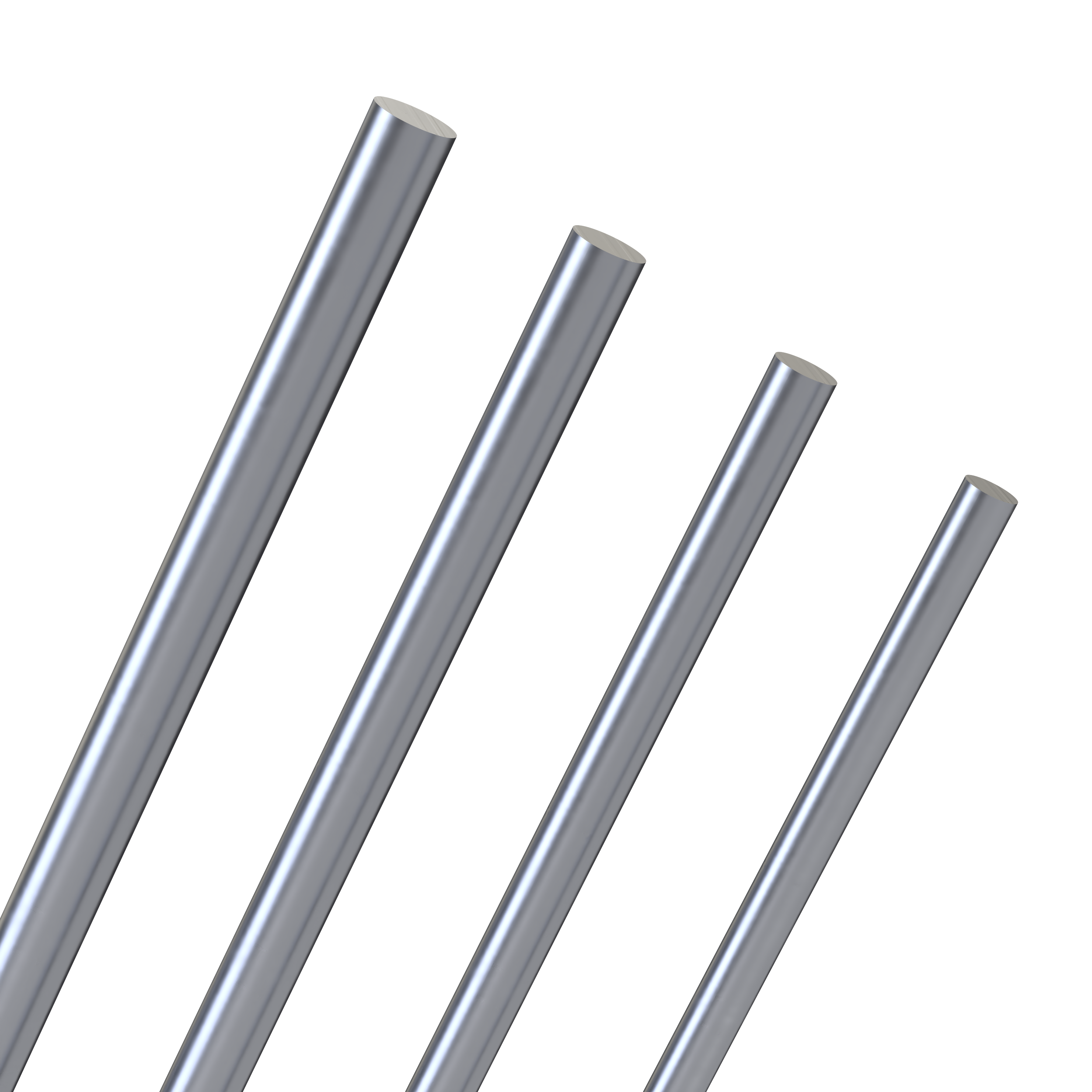

Aluminum Tie & Ground Wire
Solid soft 1350-O aluminium wire used to mechanically secure conductors to pin insulators in overhead line construction, and for grounding applications.
- Conductor
- Solid, soft 1350-O aluminium
- Sizes
- 6, 4 and 2 AWG solid
- Temper
- Annealed for hand forming
- Use
- Mechanical securing and grounding
Applications: Tying conductors to pin insulators · Overhead transmission line construction · Distribution line construction · Grounding applications in line work
Technical detailManufacturing
A single production line, told in four chapters
Chapter 01 — Material
Aluminium and copper arrive to specification
Incoming rod and compound are checked against purchase specification before release to production, so every batch begins with verified material.
- Control
- Incoming inspection

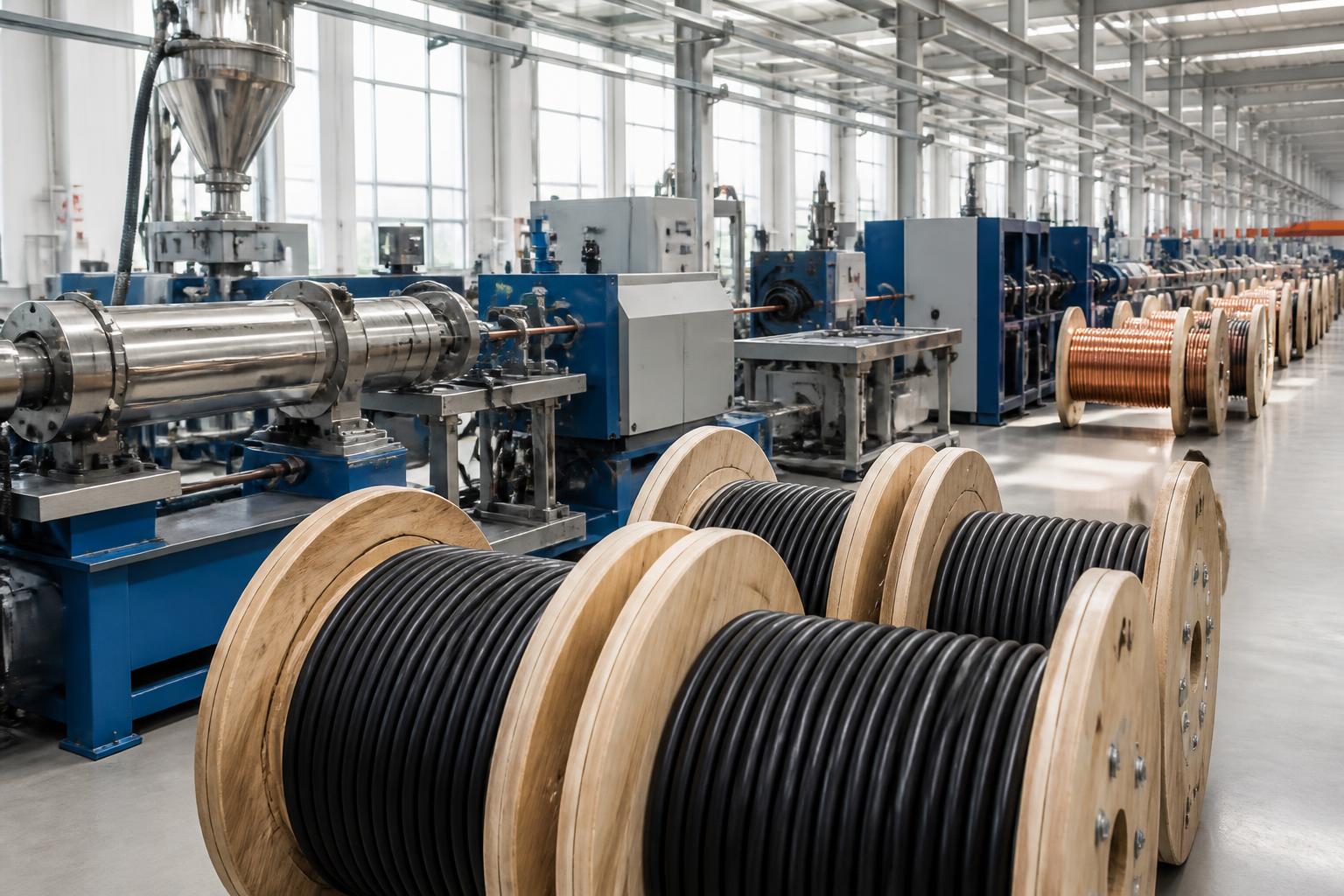

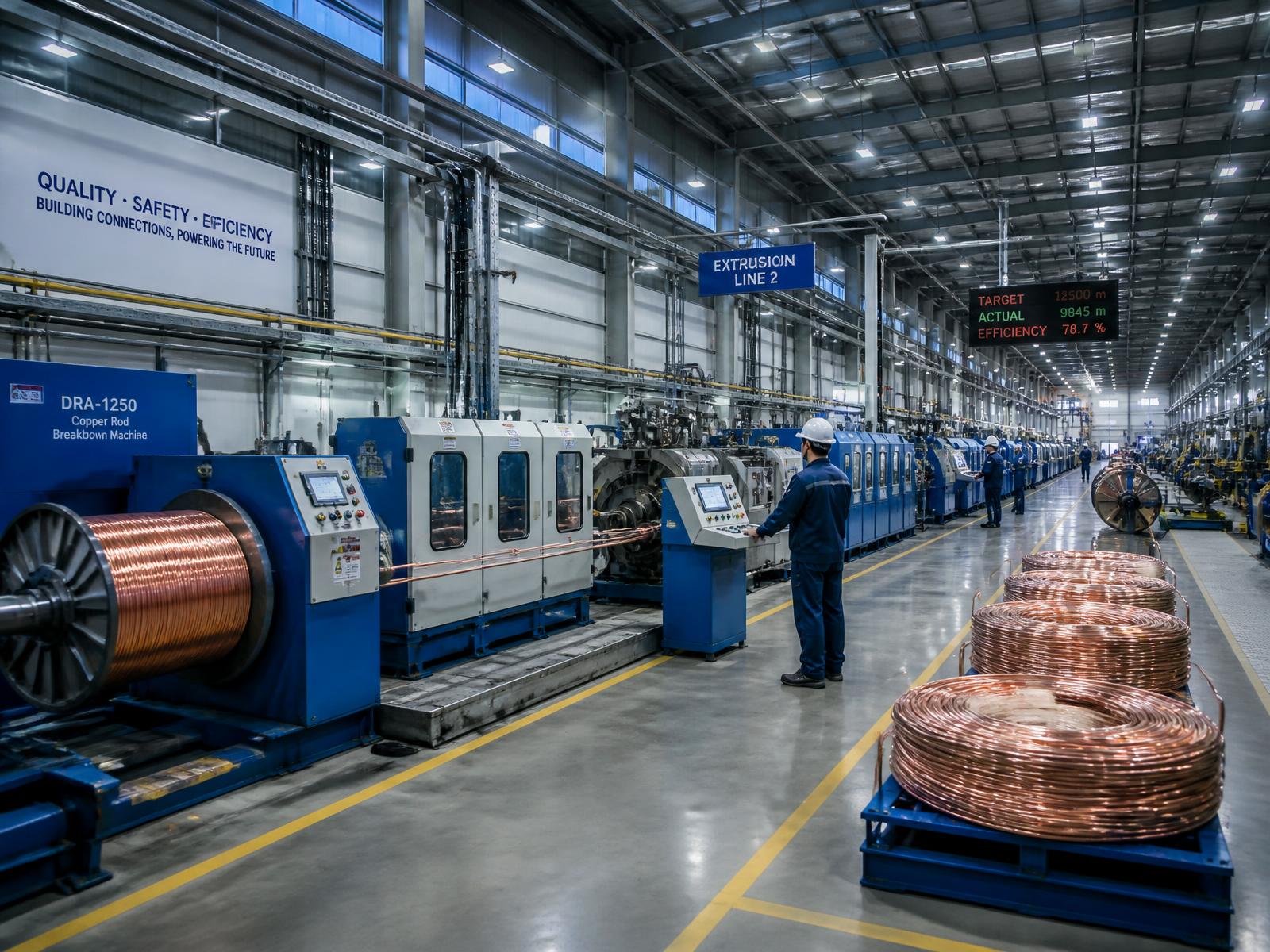

Chapter 02 — Process
Drawing, stranding, insulation, armouring
Wire drawing, concentric stranding, extrusion, armouring and sheathing run as one connected line, keeping specification and process parameters together.
- In-house
- Full process chain
- Output
- Cables & conductors

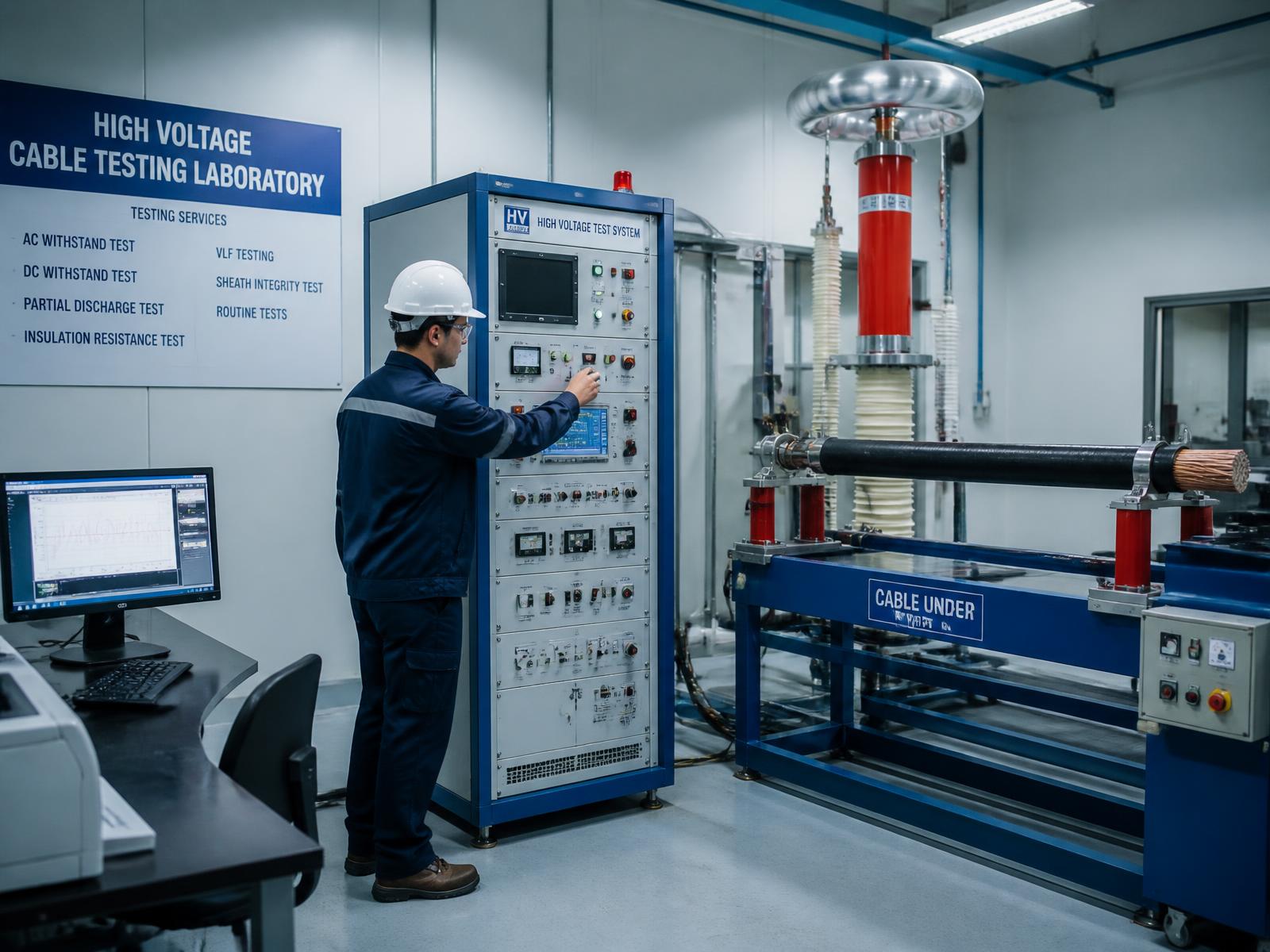

Chapter 03 — Test
Electrical, mechanical and dimensional testing
Type, routine and acceptance tests are carried out in-house, with customer and third-party inspection supported at the point of manufacture.
- Witnessing
- Customer & third party
Chapter 04 — Traceability
Batch identity from raw material to despatch
Drum-level records connect material, process and test data, so a delivered length can be traced back through every stage that produced it.
- Record
- Drum-level
01 / 04
Quality as a process
Not a certificate wall — a continuous chain of control
Management systems and product standards are documented and auditable. Certification is evidence of the process, shown here as supporting reference rather than decoration.
Step 01
Raw material
Specification-controlled aluminium, copper and compounds released only after incoming checks.
Step 02
Manufacturing
Process parameters recorded against the applicable product standard for each run.
Step 03
Testing
Electrical, mechanical and dimensional tests performed in the in-house laboratory.
Step 04
Inspection
Customer and third-party inspection supported at stage and final stages.
Step 05
Traceability
Drum-level records linking material, process and test results.
Step 06
Dispatch
Packing, marking and documentation prepared to contract requirements.
ISO 9001:2015Quality Management System
ISO 14001:2015Environmental Management System
ISO 45001:2018Occupational Health & Safety
UL 44Thermoset insulated wires and cables
UL 1685Vertical-tray fire propagation and smoke release
UL 854Underground service entrance cable
CSA C22.2 No. 38 (RW90)Thermoset insulated wires and cables
Quality & certificationsClient verification required: Certificate numbers, issuing authority and validity dates must be supplied and current before any certificate preview is published.
Global presence
Supplying India, connecting selected international markets
Locations reveal on hover or keyboard focus. Only confirmed information is plotted — no country counts, customer numbers or markets are published before written confirmation.
Jaipur, Rajasthan
Head office & manufacturing
Investors and careers
Investor Centre
Precision, structure and disclosure
Governance information, approved reports and statutory disclosures, organised by financial year and published only after authorised approval.
- Disclosures
- Structured by financial year
- Governance
- Policies and board information
- Approval
- Published after authorisation
Life at Oswal
Careers built around people who keep the lights on
Engineers, technicians and management professionals building long careers across manufacturing, quality and project execution.
Careers at OswalLatest from Oswal Cables
All insightsIndustry Insight

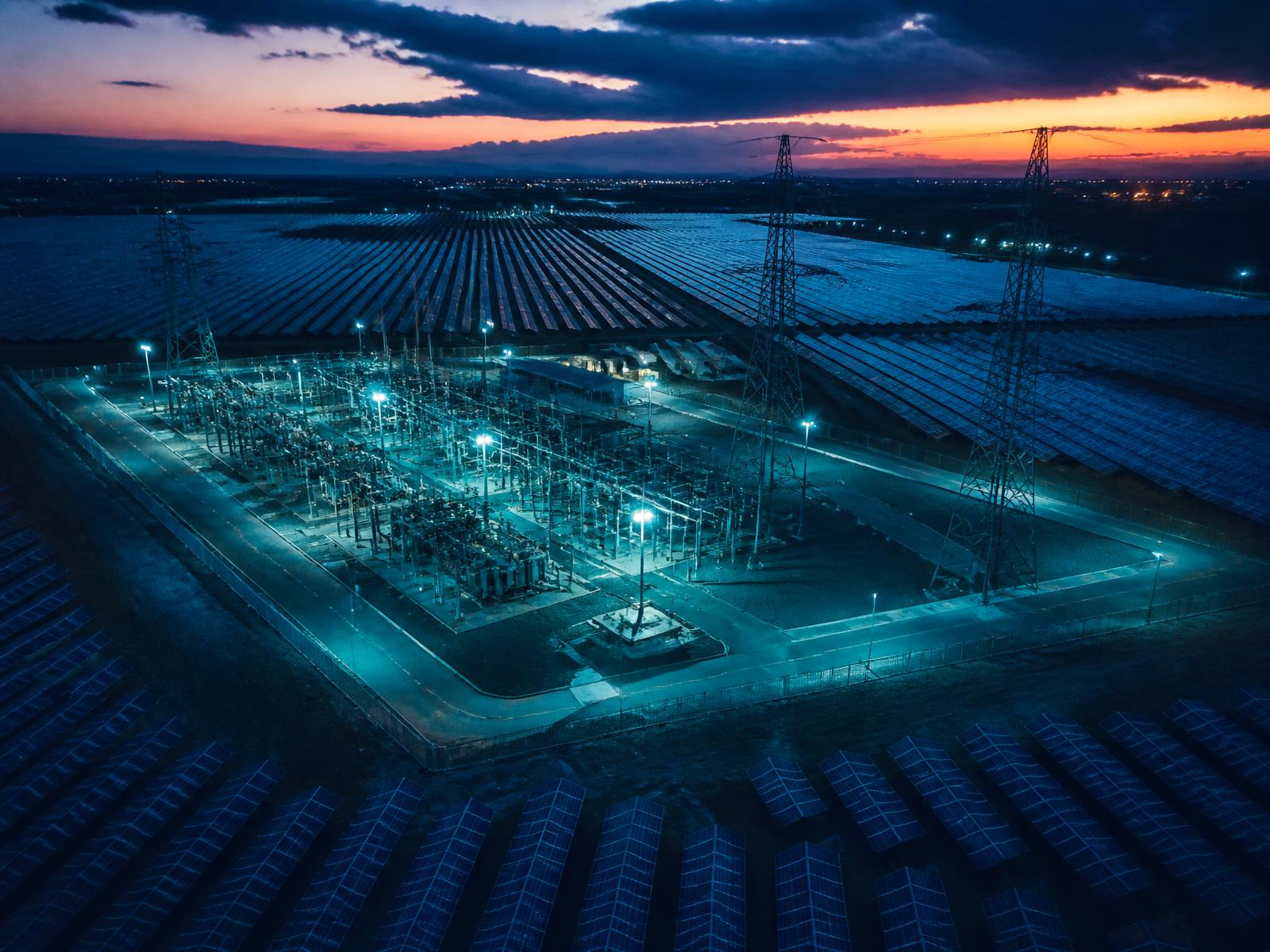

Selecting conductors for renewable power evacuation
Design considerations when specifying AAC, AAAC and ACSR conductors for solar and wind evacuation lines.
Quality
Inside our cable testing and inspection routine
How type, routine and acceptance tests are sequenced to keep every despatch traceable and inspectable.
