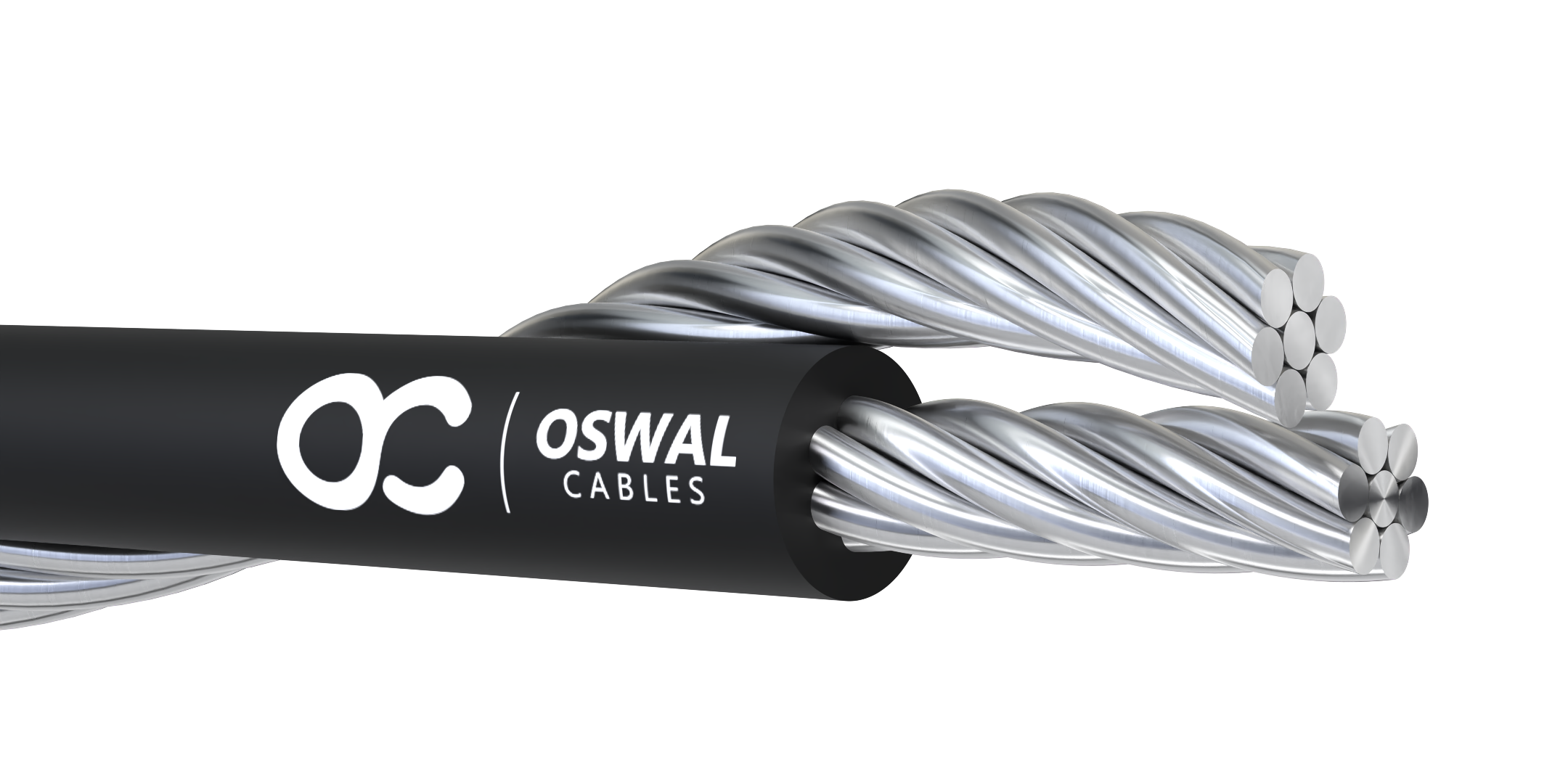

Service Drop Duplex
Duplex Overhead Aluminum Conductor (Service Drop).
Applications
Where it is used
- To supply power aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 75°C maximum for polyethylene insulation or 90ºC maximum for cross linked insulation.
Construction
What it's built from
- Construction
- Concentrically stranded, compressed 1350-H19 aluminum conductor, cross-linked polyethylene (XLP) or polyethylene (PE) insulation, concentrically stranded AAC, ACSR, or AAAC 6201 alloy neutral messenger.
- Options
- Ridged Phase ID
Technical specifications
Sizes & ratings
AAC NEUTRAL MESSENGER
| Code Word | Phase Size (AWG/kcmil) | Phase No. of Strands | Insulation Thickness (in) | Neutral Size (AWG/kcmil) | Neutral No. of Strands | Breaking Strength (lbs) | Completed Cable Diameter (in) | Weight XLP (lbs/kft) | Weight Poly (lbs/kft) | Ampacity XLP 90°C (amps) | Ampacity PE 75°C (amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Pekingese | 6 | Solid | 0.045 | 6 | 7 | 563 | 0.44 | 64 | 62 | 85 | 70 |
| Collie | 6 | 7 | 0.045 | 6 | 7 | 563 | 0.46 | 69 | 63 | 85 | 70 |
| Dachshund | 4 | Solid | 0.045 | 4 | 7 | 881 | 0.53 | 96 | 93 | 115 | 90 |
| Spaniel | 4 | 7 | 0.045 | 4 | 7 | 881 | 0.56 | 101 | 95 | 115 | 90 |
| Doberman | 2 | 7 | 0.045 | 2 | 7 | 1,350 | 0.68 | 153 | 146 | 150 | 120 |
| Malamute | 1/0 | 19 | 0.060 | 1/0 | 7 | 1,990 | 0.87 | 243 | 234 | 205 | 160 |
All values are nominal and subject to correction #Conductor temperature of 90ºC for XLP, 75ºC for PE; ambient temperature of 40ºC, emissivity 0.9; 2ft/sec. wind in sun. ##Designated 6201 neutral sizes are ACSR 6/1 diameter equivalent, phase conductor resistivity equivalent per ASTM B399.
ACSR NEUTRAL MESSENGER
| Code Word | Phase Size (AWG/kcmil) | Phase No. of Strands | Insulation Thickness (in) | Neutral Size (AWG/kcmil) | Neutral No. of Strands | Breaking Strength (lbs) | Completed Cable Diameter (in) | Weight XLP (lbs/kft) | Weight Poly (lbs/kft) | Ampacity XLP 90°C (amps) | Ampacity PE 75°C (amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Setter | 6 | Solid | 0.045 | 6 | 6/1 | 1,190 | 0.46 | 75 | 73 | 85 | 70 |
| Shepherd | 6 | 7 | 0.045 | 6 | 6/1 | 1,190 | 0.48 | 78 | 75 | 85 | 70 |
| Eskimo | 4 | Solid | 0.045 | 4 | 6/1 | 1,860 | 0.55 | 114 | 112 | 115 | 90 |
| Terrier | 4 | 7 | 0.045 | 4 | 6/1 | 1,860 | 0.58 | 119 | 114 | 115 | 90 |
| Chow | 2 | 7 | 0.045 | 2 | 6/1 | 2,850 | 0.70 | 182 | 175 | 150 | 120 |
| Bull | 1/0 | 19 | 0.060 | 1/0 | 6/1 | 4,380 | 0.90 | 289 | 280 | 205 | 160 |
All values are nominal and subject to correction #Conductor temperature of 90ºC for XLP, 75ºC for PE; ambient temperature of 40ºC, emissivity 0.9; 2ft/sec. wind in sun. ##Designated 6201 neutral sizes are ACSR 6/1 diameter equivalent, phase conductor resistivity equivalent per ASTM B399.
6201 ALLOY NEUTRAL MESSENGER
| Code Word | Phase Size (AWG/kcmil) | Phase No. of Strands | Insulation Thickness (in) | Neutral Size (AWG/kcmil) | Neutral No. of Strands | Breaking Strength (lbs) | Completed Cable Diameter (in) | Weight XLP (lbs/kft) | Weight Poly (lbs/kft) | Ampacity XLP 90°C (amps) | Ampacity PE 75°C (amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Chihuahua | 6 | Solid | 0.045 | 6 | 7 | 1,110 | 0.46 | 68 | 66 | 85 | 70 |
| Vizsla | 6 | 7 | 0.045 | 6 | 7 | 1,110 | 0.48 | 71 | 67 | 85 | 70 |
| Harrier | 4 | Solid | 0.045 | 4 | 7 | 1,760 | 0.55 | 102 | 100 | 115 | 90 |
| Whippet | 4 | 7 | 0.045 | 4 | 7 | 1,760 | 0.58 | 107 | 102 | 115 | 90 |
| Schnauzer | 2 | 7 | 0.045 | 2 | 7 | 2,800 | 0.70 | 163 | 156 | 150 | 120 |
| Heeler | 1/0 | 19 | 0.060 | 1/0 | 7 | 4,460 | 0.90 | 1259 | 251 | 205 | 160 |
All values are nominal and subject to correction #Conductor temperature of 90ºC for XLP, 75ºC for PE; ambient temperature of 40ºC, emissivity 0.9; 2ft/sec. wind in sun. ##Designated 6201 neutral sizes are ACSR 6/1 diameter equivalent, phase conductor resistivity equivalent per ASTM B399.
Standards
Referenced specifications
- ASTM B-230 Aluminum 1350–H19 Wire for Electrical Purposes
- ASTM B-231 Concentric-Lay-Stranded Aluminum 1350 Conductors
- ASTM B-232 Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR)
- ASTM B-399 Concentric-Lay-Stranded Aluminum-Alloy 6201-T81 Conductors
- ICEA S-76-474 — Service Drop cable meets or exceeds all applicable requirements
