Single Core CU/XLPE/LSHF/AWA/LSHF

Single core CU/XLPE/LSHF/AWA/LSHF — XLPE insulated, LSHF bedded, AWA armoured, LSHF sheathed cable, 0.6/1kV. Low Smoke Halogen Free.

Construction

What it's built from

Component 1: Copper Conductor
Component 2: XLPE Insulation
Component 3: LSHF Bedding
Component 4: Aluminium Wire Armoured
Component 5: LSHF Sheath
Operating voltage, Uo/U: 600/1000V
Max. operating temperature: 90°C
Final short circuit temperature: 250°C
Test voltage: 3.5kV for 5 minutes
Min. bending radius (mm): 10 x Cable Overall Diameter
Max. pulling tension (kgf): 7 x No. of Core x Conductor Size

Technical specifications

Sizes & ratings

Construction

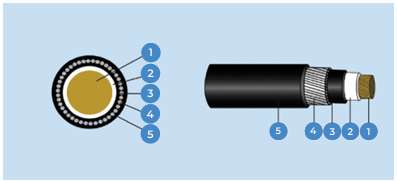

Single Core CU/XLPE/LSHF/AWA/LSHF — construction diagram

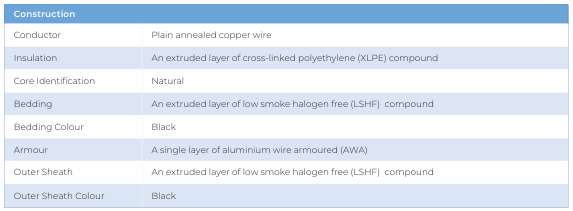

Single Core CU/XLPE/LSHF/AWA/LSHF — construction details

Dimension & Electrical Data

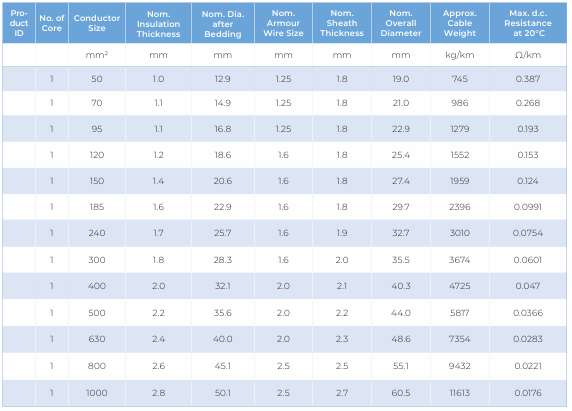

Single Core CU/XLPE/LSHF/AWA/LSHF — dimension and electrical data (catalogue page 42)

Current Ratings and Voltage Drop Table (Armoured Cable)

Single Core CU/XLPE/LSHF/AWA/LSHF — current ratings and voltage drop, armoured cable (single-core)

Single Core CU/XLPE/LSHF/AWA/LSHF — current ratings and voltage drop, armoured cable (twin and multi core)

Standards

Single Core CU/XLPE/LSHF/AWA/LSHF — standards referenced in the Oswal LV cable catalogue

Standards

Referenced specifications

Design Guide: BS6724, IEC60502-1
Conductor: IEC60228, BS6360, BS EN 60228
Flame Retardancy: IEC60332-1-2, IEC60332-3-22
Low Smoke & Reduced Toxicity: IEC60754-1/2, IEC61034-2
