Single Core CU/PVC/PVC/AWA/PVC

Single core CU/PVC/PVC/AWA/PVC — PVC insulated, PVC bedded, AWA armoured, PVC sheathed cable, 0.6/1kV.

Construction

What it's built from

Component 1: Copper Conductor
Component 2: PVC Insulation
Component 3: PVC Bedding
Component 4: Aluminium Wire Armoured
Component 5: PVC/PVC-FR** sheath
Operating voltage, Uo/U: 600/1000V
Max. operating temperature: 70°C
Final short circuit temperature: 160°C
Test voltage: 3.5kV for 5 minutes
Min. bending radius (mm): 10 x Cable Overall Diameter
Max. pulling tension (kgf): 7 x No. of Core x Conductor Size

Technical specifications

Sizes & ratings

Construction

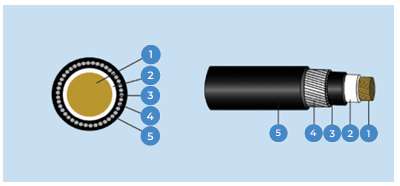

Single Core CU/PVC/PVC/AWA/PVC — construction diagram

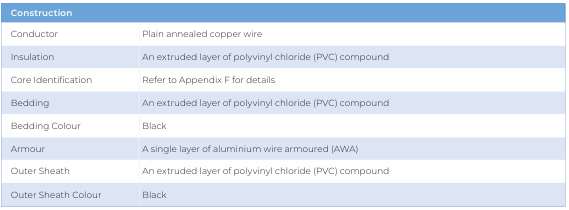

Single Core CU/PVC/PVC/AWA/PVC — construction details

Dimension & Electrical Data

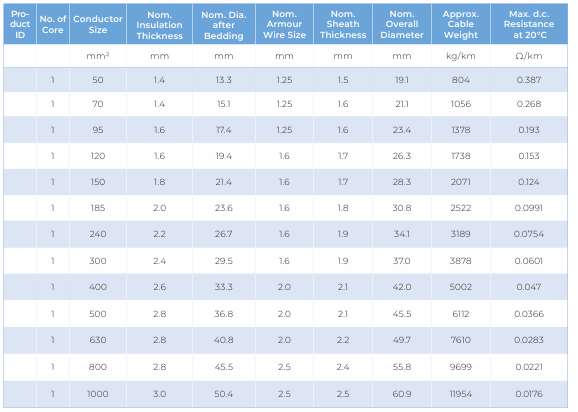

Single Core CU/PVC/PVC/AWA/PVC — dimension and electrical data (catalogue page 14) — * Optional ** Available upon request

Current Ratings and Voltage Drop Table (Armoured Cable)

Single Core CU/PVC/PVC/AWA/PVC — current ratings and voltage drop, armoured cable (single-core)

Single Core CU/PVC/PVC/AWA/PVC — current ratings and voltage drop, armoured cable (twin and multi core)

Standards

Single Core CU/PVC/PVC/AWA/PVC — standards referenced in the Oswal LV cable catalogue

Standards

Referenced specifications

Design Guide: BS6346, MS274
Conductor: IEC60228, BS6360, BS EN 60228
Flame Retardancy: IEC60332-1-2, IEC60332-3-24**, IEC60332-3-22
