Single Core CU/PVC

Single core CU/PVC — PVC insulated, non-sheathed cable, 450/750V. From the Oswal Low Voltage Power Cable range (XLPE, PVC, LSHF).

Construction

What it's built from

Component 1: Copper Conductor
Component 2: PVC Insulation
Operating voltage, Uo/U: 450/750V
Max. operating temperature: 70°C
Final short circuit temperature: 160°C
Test voltage: 2.5kV for 15 minutes
Min. bending radius (mm): 6 x Cable Overall Diameter
Max. pulling tension (kgf): 7 x No. of Core x Conductor Size

Technical specifications

Sizes & ratings

Construction

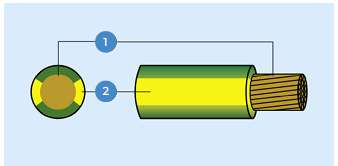

Single Core CU/PVC — construction diagram

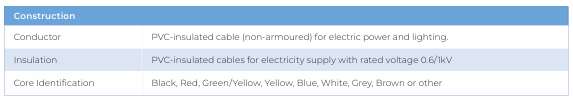

Single Core CU/PVC — construction details

Dimension & Electrical Data

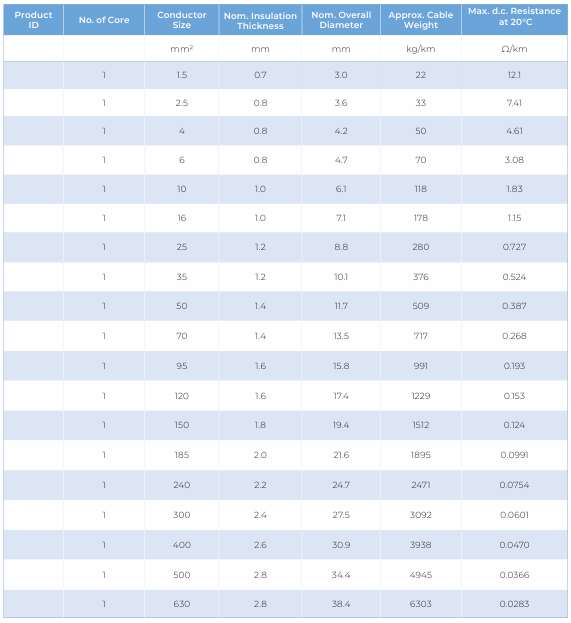

Single Core CU/PVC — dimension and electrical data (catalogue page 6)

Current Ratings and Voltage Drop Table (Unarmoured Cable)

Single Core CU/PVC — current ratings, unarmoured cable

Single Core CU/PVC — voltage drop, single core cables (per amp per metre)

Single Core CU/PVC — voltage drop, multi-core cables (per amp per metre)

Standards

Single Core CU/PVC — standards referenced in the Oswal LV cable catalogue

Standards

Referenced specifications

Design Guide: IEC60227-3, BS EN 50525-2-31, SS358-3, MS136
Conductor: IEC60228, BS6360, BS EN 60228
Flame Retardancy: IEC60332-1-2, IEC60332-3-24**
