Single Core CU/LSHF

Single core CU/LSHF — cross-linked polyolefin insulated, non-sheathed cable, 450/750V. Low Smoke Halogen Free.

Construction

What it's built from

Component 1: Copper Conductor
Component 2: LSHF Insulation
Operating voltage, Uo/U: 450/750V
Max. operating temperature: 90°C
Final short circuit temperature: 250°C
Test voltage: 2.5kV for 15 minutes
Min. bending radius (mm): 6 x Cable Overall Diameter
Max. pulling tension (kgf): 7 x No. of Core x Conductor Size

Technical specifications

Sizes & ratings

Construction

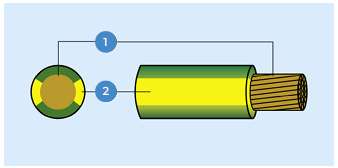

Single Core CU/LSHF — construction diagram

Single Core CU/LSHF — construction details

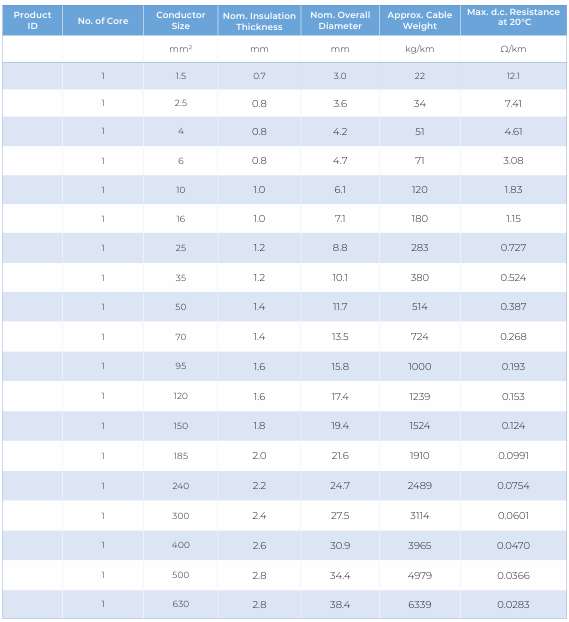

Dimension & Electrical Data

Single Core CU/LSHF — dimension and electrical data (catalogue page 34)

Current Ratings and Voltage Drop Table (Unarmoured Cable)

Single Core CU/LSHF — current ratings, unarmoured cable

Single Core CU/LSHF — voltage drop, single core cables (per amp per metre)

Single Core CU/LSHF — voltage drop, multi-core cables (per amp per metre)

Standards

Single Core CU/LSHF — standards referenced in the Oswal LV cable catalogue

Standards

Referenced specifications

Design Guide: BS7211
Conductor: IEC60228, BS6360, BS EN 60228
Flame Retardancy: IEC60332-1-2, IEC60332-3-22
Low Smoke & Reduced Toxicity: IEC60754-1/2, IEC61034-2
