CU/XLPE/PVC/SWA/PVC

2-, 3-, 4-, 5-, multicores CU/XLPE/PVC/SWA/PVC — XLPE insulated, PVC bedded, SWA armoured, PVC sheathed cable, 0.6/1kV.

Construction

What it's built from

Component 1: Copper Conductor
Component 2: XLPE Insulation
Component 3: PVC Bedding
Component 4: Galvanised Steel Wire Armoured
Component 5: PVC Sheath
Operating voltage, Uo/U: 600/1000V
Max. operating temperature: 90°C
Final short circuit temperature: 250°C
Test voltage: 3.5kV for 5 minutes
Min. bending radius (mm): 10 x Cable Overall Diameter
Max. pulling tension (kgf): 7 x No. of Core x Conductor Size

Technical specifications

Sizes & ratings

Construction

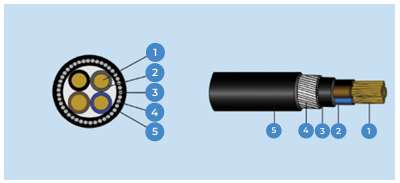

CU/XLPE/PVC/SWA/PVC — construction diagram

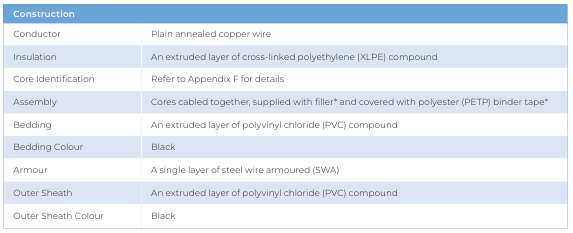

CU/XLPE/PVC/SWA/PVC — construction details

Dimension & Electrical Data

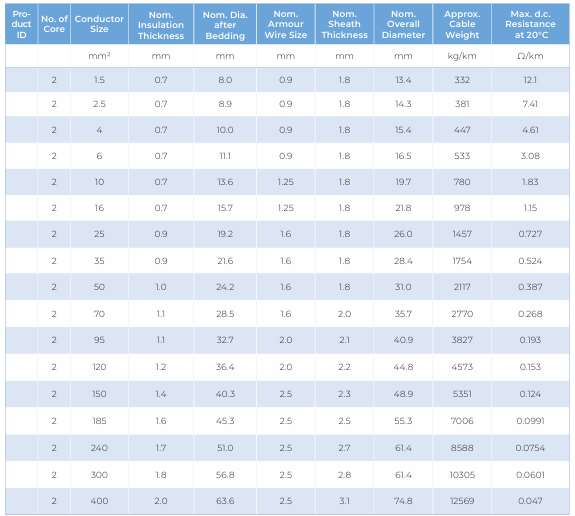

CU/XLPE/PVC/SWA/PVC — dimension and electrical data (catalogue page 29) — * Optional ** Available upon request

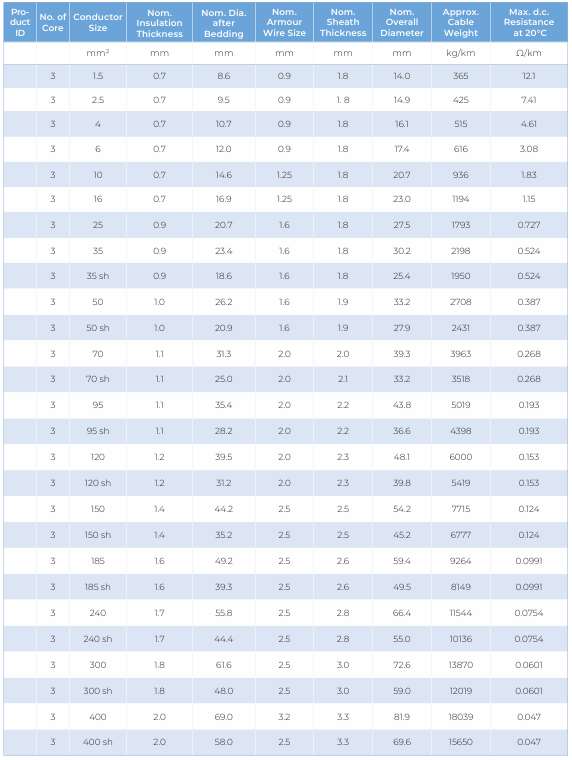

CU/XLPE/PVC/SWA/PVC — dimension and electrical data (catalogue page 30) — sh: sector shaped conductor

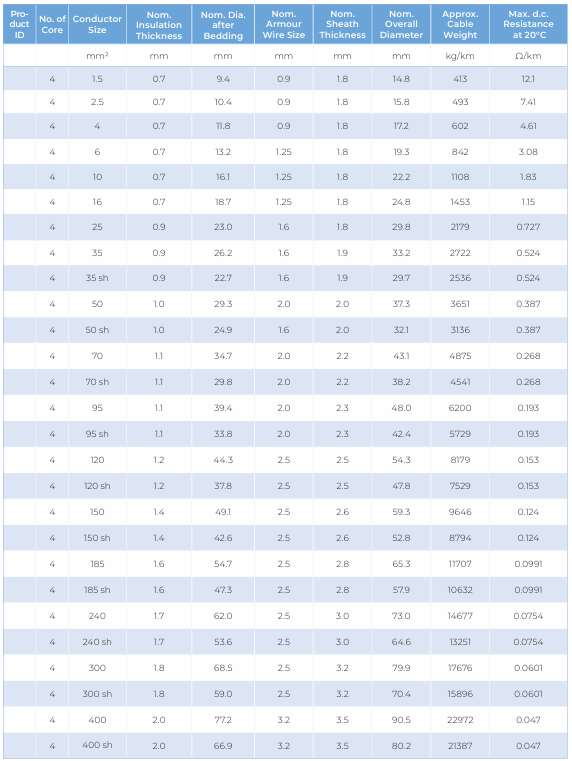

CU/XLPE/PVC/SWA/PVC — dimension and electrical data (catalogue page 31) — sh: sector shaped conductor

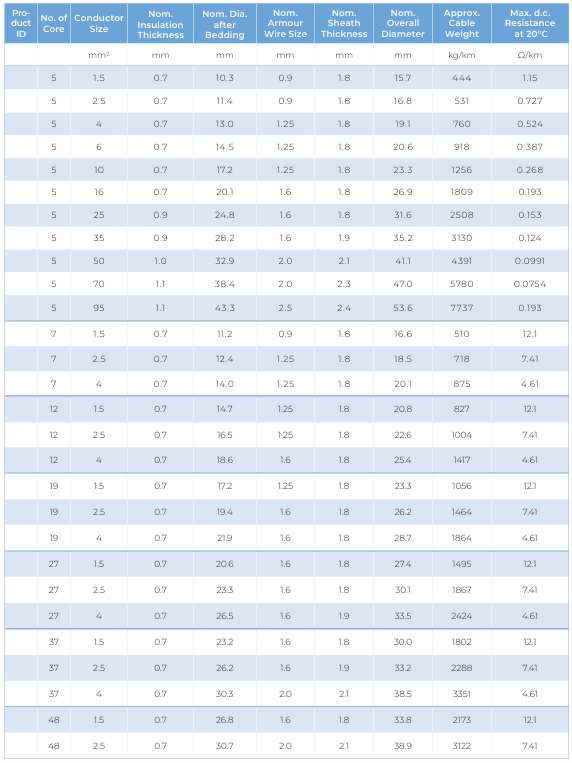

CU/XLPE/PVC/SWA/PVC — dimension and electrical data (catalogue page 32)

Current Ratings and Voltage Drop Table (Armoured Cable)

CU/XLPE/PVC/SWA/PVC — current ratings and voltage drop, armoured cable (single-core)

CU/XLPE/PVC/SWA/PVC — current ratings and voltage drop, armoured cable (twin and multi core)

Standards

CU/XLPE/PVC/SWA/PVC — standards referenced in the Oswal LV cable catalogue

Standards

Referenced specifications

Design Guide: BS5467, IEC60502-1
Conductor: IEC60228, BS6360, BS EN 60228
Flame Retardancy: IEC60332-1-2, IEC60332-3-24**, IEC60332-3-22**
