CU/XLPE/PVC

Single core, 2-, 3-, 4-, 5-, multicores CU/XLPE/PVC — XLPE insulated, PVC sheathed cable, 0.6/1kV.

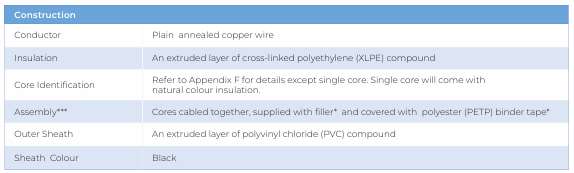

Construction

What it's built from

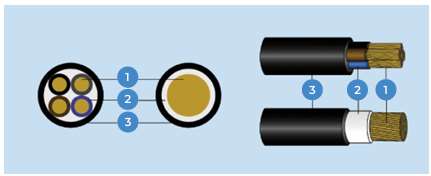

Component 1: Copper Conductor
Component 2: XLPE Insulation
Component 3: PVC/PVC-FR** sheath
Operating voltage, Uo/U: 600/1000V
Max. operating temperature: 90°C
Final short circuit temperature: 250°C
Test voltage: 3.5kV for 5 minutes
Min. bending radius (mm): 6 x Cable Overall Diameter (Single Core); 8 x Cable Overall Diameter (2-, 3-, 4-, 5-, multicores)
Max. pulling tension (kgf): 7 x No. of Core x Conductor Size
