CU/PVC/PVC/SWA/PVC
2-, 3-, 4-, 5-, multicores CU/PVC/PVC/SWA/PVC — PVC insulated, PVC bedded, SWA armoured, PVC sheathed cable, 0.6/1kV.

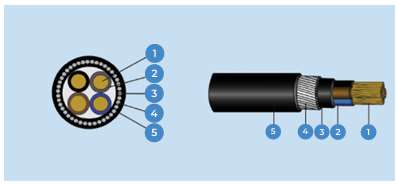

Construction
What it's built from
- Component 1
- Copper Conductor
- Component 2
- PVC Insulation
- Component 3
- PVC Bedding
- Component 4
- Galvanised Steel Wire Armoured
- Component 5
- PVC/PVC-FR** sheath
- Operating voltage, Uo/U
- 600/1000V
- Max. operating temperature
- 70°C
- Final short circuit temperature
- 160°C
- Test voltage
- 3.5kV for 5 minutes
- Min. bending radius (mm)
- 10 x Cable Overall Diameter
- Max. pulling tension (kgf)
- 7 x No. of Core x Conductor Size
Technical specifications
Sizes & ratings

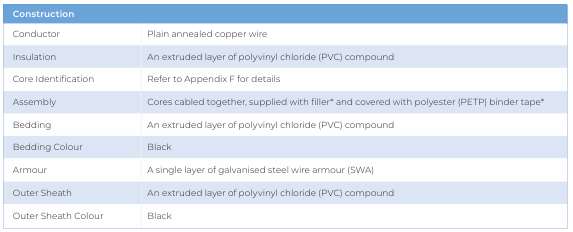

Construction

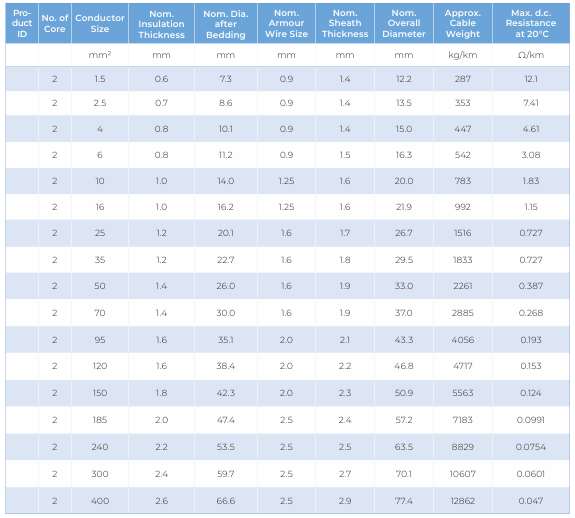

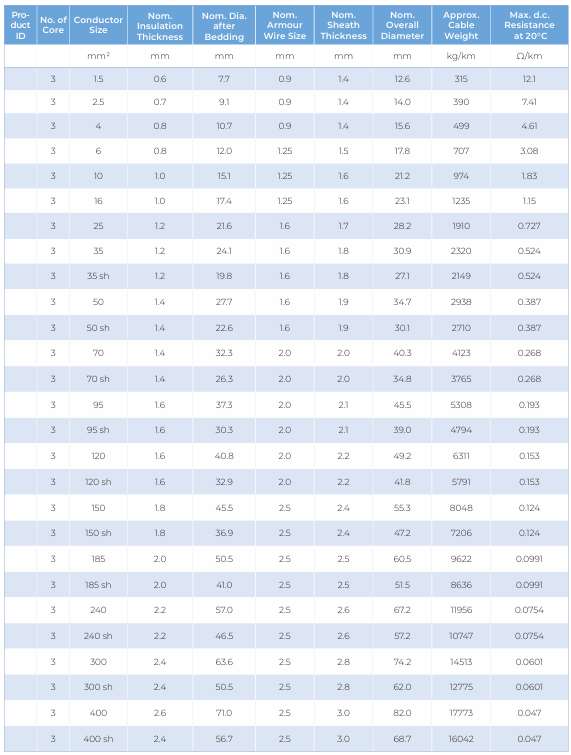

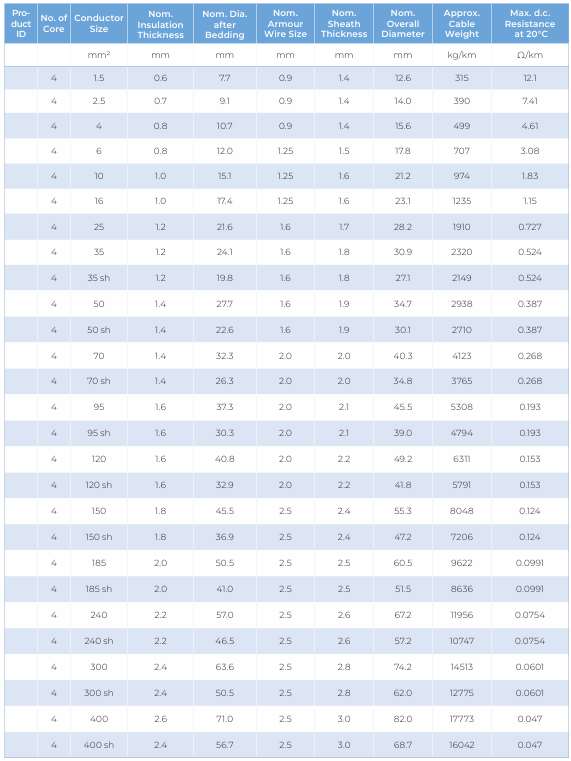

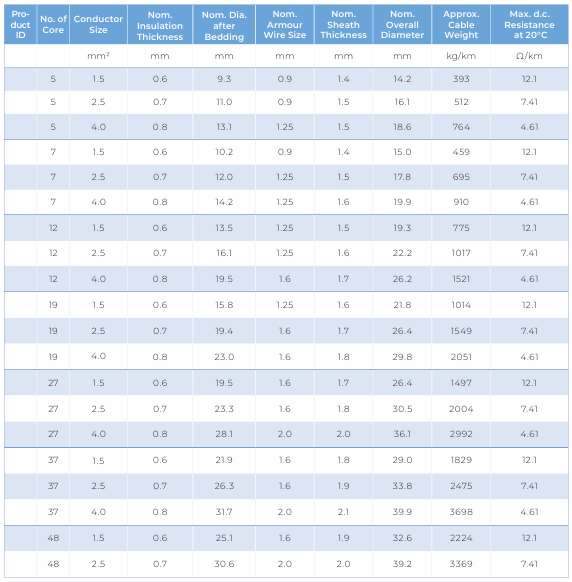

Dimension & Electrical Data

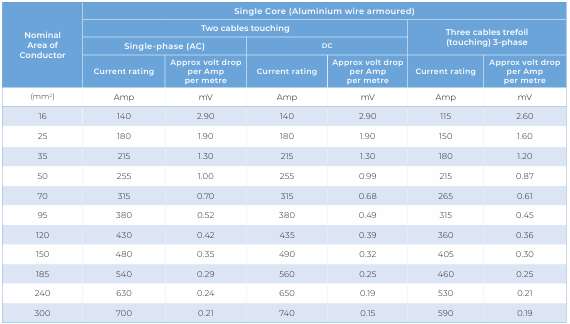

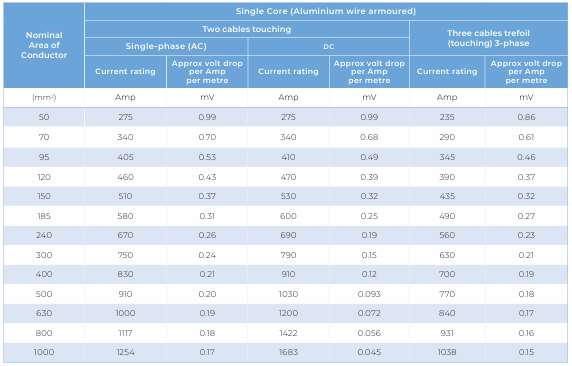

Current Ratings and Voltage Drop Table (Armoured Cable)
Standards
Standards
Referenced specifications
- Design Guide: BS6346, MS274
- Conductor: IEC60228, BS6360, BS EN 60228
- Flame Retardancy: IEC60332-1-2, IEC60332-3-24**, IEC60332-3-22**
