CU/PVC/PVC

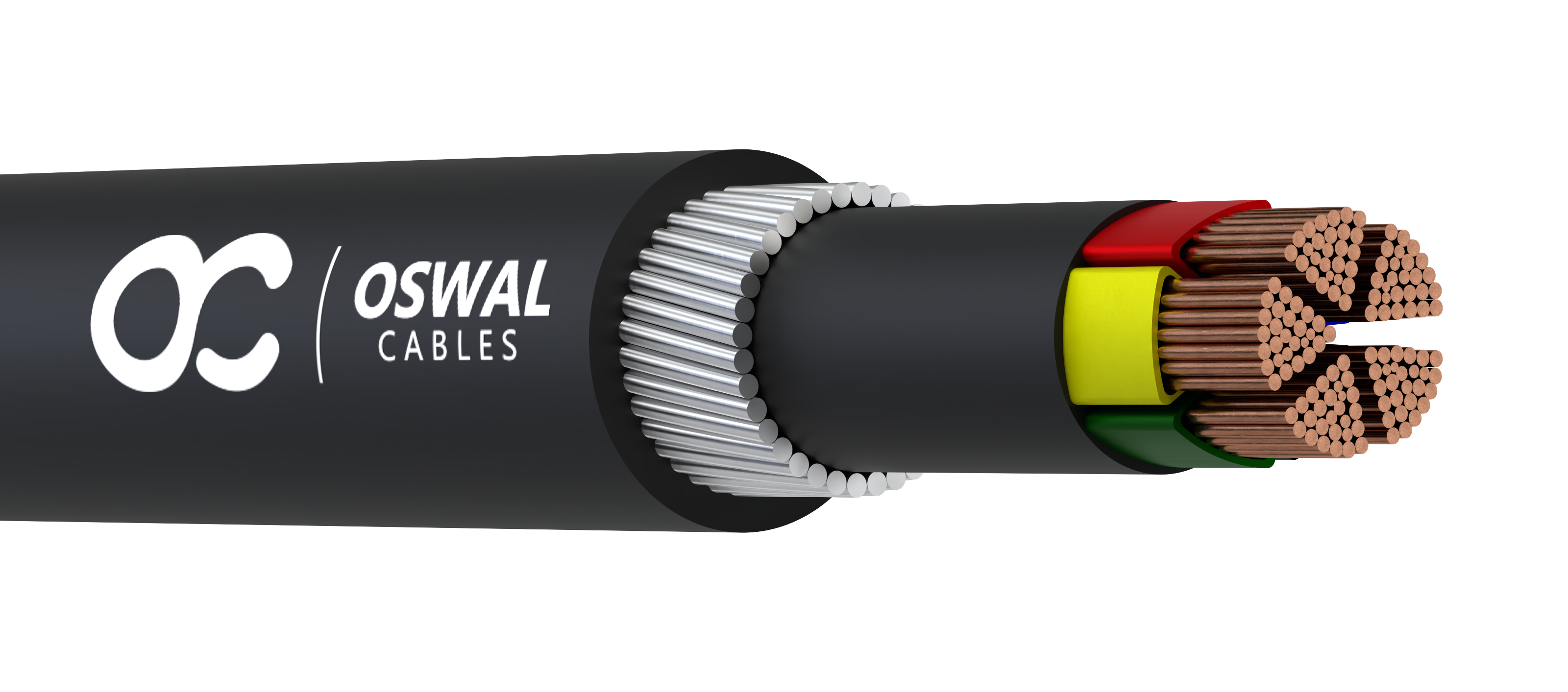

Single core, 2-, 3-, 4-, 5-, multicores CU/PVC/PVC — PVC insulated, PVC sheathed cable, 0.6/1kV.

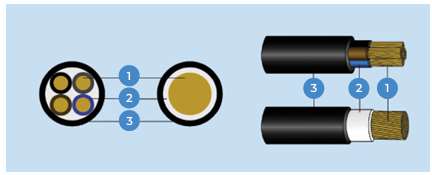

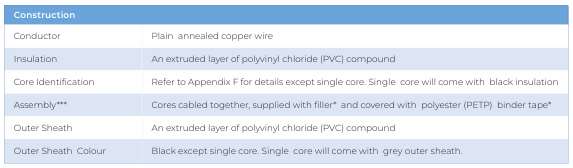

Construction

What it's built from

Component 1: Copper Conductor
Component 2: PVC Insulation
Component 3: PVC/PVC-FR** sheath
Operating voltage, Uo/U: 600/1000V
Max. operating temperature: 70°C
Final short circuit temperature: 160°C
Test voltage: 3.5kV for 5 minutes
Min. bending radius (mm): 8 x Cable Overall Diameter, (sector shape); 6 x cable overall diameter (circular shape)
Max. pulling tension (kgf): 7 x No. of Core x Conductor Size
